ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L3 Turbo]
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L3 Turbo]
id0140b6802000
-
Note
-
• Perform the following inspection only when directed.
ECT Sensor Resistance Inspection
1. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS [L8, LF, L3, L3 Turbo].)
2. Remove the ECT sensor (located above the starter).
3. Place the ECT sensor in water with a thermometer, and heat the water gradually.
4. Measure the resistance between the ECT sensor terminals A and B using a tester.
-
• If not as specified, replace the ECT sensor.
-
• If the ECT sensor is normal, but PID value is out of specification, perform the "Circuit Open/Short Inspection".

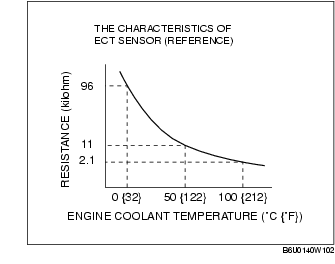

Specification
|
Water temperature (°C {°F})
|
Resistance (kilohm)
|
|
20 {68}
|
35.48-39.20
|
|
70 {158}
|
5.07-5.60
|
|
80 {176}
|
3.65-4.02
|
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
-
• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
-
- ECT sensor terminal A and PCM terminal 1M
-
- ECT sensor terminal B and PCM terminal 2H
Short circuit
-
• If there is continuity, there is a short circuit. Repair or replace the wiring harness.
-
- ECT sensor terminal A and power supply
-
- ECT sensor terminal A and body ground
-
- ECT sensor terminal B and power supply
