TRANSVERSE MEMBER REMOVAL/INSTALLATION
TRANSVERSE MEMBER REMOVAL/INSTALLATION
id021300801100

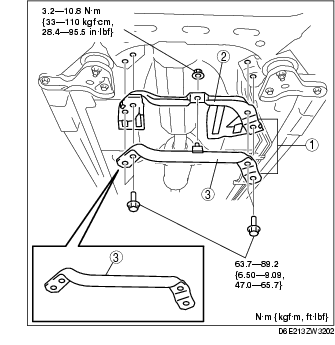

1. Remove in the order indicated in the table.
|
1
|
Transverse member and transverse cover
|
|
2
|
Transverse cover
|
|
3
|
Transverse member
|
2. Install in the reverse order of removal.
Transverse Cover Installation Note
1. Install the transverse cover.

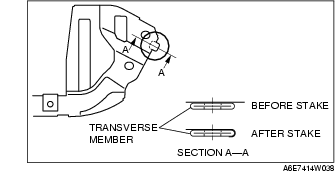

2. Stake area A as shown in the figure.
