1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
.
|
1
|
Flexible hose
|
|
2
|
Cap
|
|
3
|
Guide pin
|
|
4
|
Caliper
|
|
5
|
M-spring
|
|
6
|
Disc pad
|
|
7
|
Guide plate
|
|
8
|
Mounting support
|
|
9
|
Disc plate
(See Disc Plate Removal Note)
|

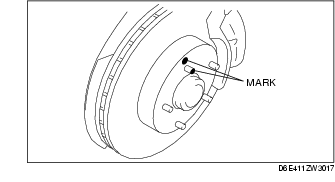

1. Mark the wheel hub bolt and disc plate before removal for reference during installation.
1. Remove any rust or grime on the contact face of the disc plate and wheel hub.
2. Install the disc plate and align the marks made before removal.

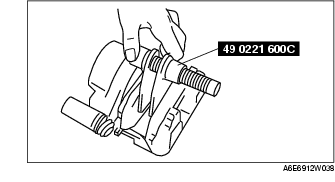

1. Push the piston fully inward using the SST.
2. Install the disc pad.
