ABS (ABS/TCS) HU/CM REMOVAL/INSTALLATION [ATX]

Caution

• When replacing the ABS (ABS/TCS) HU/CM, the configuration procedure must be done before removing the ABS (ABS/TCS) HU/CM. If the configuration is not completed before removing the ABS (ABS/TCS) HU/CM, ABS (ABS/TCS) will not work properly after installation of the ABS (ABS/TCS) HU/CM.

• Do not drop the ABS (ABS/TCS) HU/CM. Replace it if it is subjected to an impact.

1. Configurate the ABS (ABS/TCS) HU/CM (only when replacing it). (See ABS (ABS/TCS) HU/CM CONFIGURATION.)

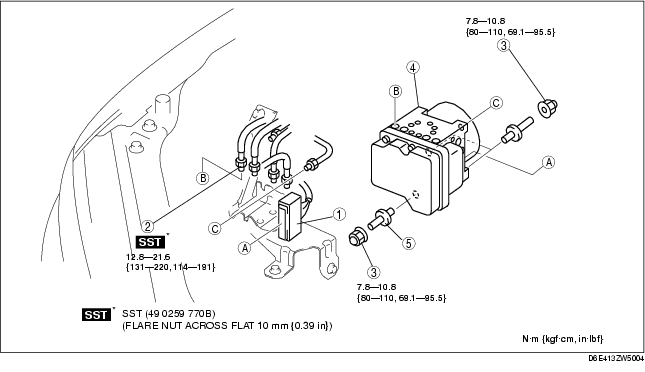

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Connector Removal Note

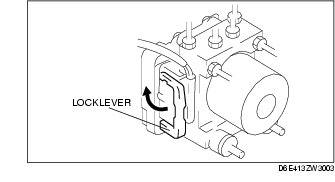

1. Release the lock lever to unlock it.

2. Remove the connector.

Brake Pipe Removal Note

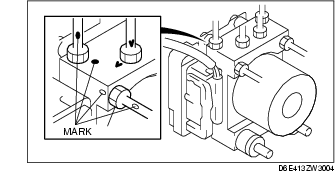

1. Mark the brake pipe connecting positions before removal for reference during installation.

ABS (ABS/TCS) HU/CM Removal/Installation Note

1. When removing/installing the ABS (ABS/TCS) HU/CM from/to the vehicle, attach a strip of protective tape on the ABS (ABS/TCS) HU/CM connector to prevent brake fluid from entering.

Brake Pipe Installation Note

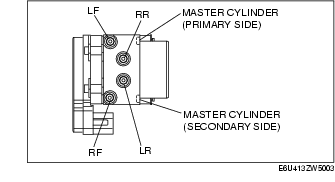

1. When installing the brake pipe, align the marks made before removal with the ABS (ABS/TCS) HU/CM as shown in the figure.

Connector Installation Note

1. Verify that the lock lever of the harness connector is securely locked.
