STEP
|
INSPECTION
|
ACTION
|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME PID DATA been recorded?
|
Yes
|
Go to next step.
|
|
No
|
Record FREEZE FRAME PID DATA on repair order, then go to next step.
|
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Check for related Service Bulletins and/or on-line repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to next step.
|
|
No
|
Go to next step.
|
|
3
|
VERIFY CURRENT INPUT SIGNAL STATUS - IS CONCERN INTERMITTENT OR CONSTANT?
• Turn ignition key to OFF.

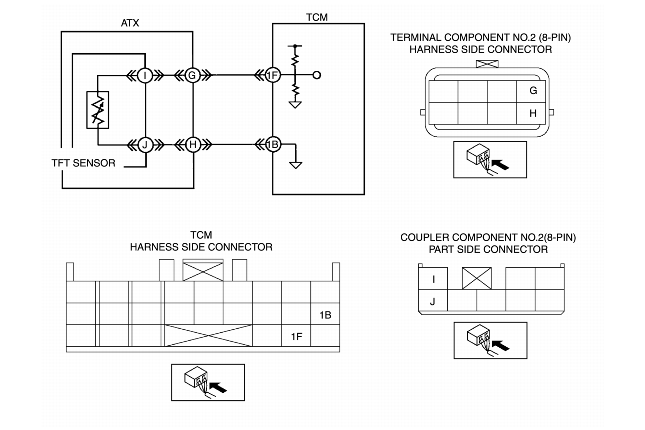

• Connect voltmeter to TCM terminal 1F.
• Turn ignition key to ON (engine OFF).
• Are TCM terminal voltage within 0.2-4.9 V?
|
Yes
|
Go to intermittent concern troubleshooting procedure.
|
|
No
|
Go to next step.
|
|
4
|
INSPECT TERMINAL CONDITION
• Turn ignition key to OFF.
• Disconnect terminal component No.2.
• Inspect bent terminals.
• Is there any malfunction?
|
Yes
|
Repair or replace terminals, then go to Step 9.
• If terminals cannot be repaired, replace harness, then go to Step 9.
|
|
No
|
Go to next step.
|
|
5
|
INSPECT TFT SENSOR CIRCUIT
• Turn ignition key to ON (engine OFF).
• Verify if TCM terminal voltage changes to 4.9 V or above when terminal component No.2 disconnected.
• Does TCM terminal voltage change?
|
Yes
|
Go to next step.
|
|
No
|
Go to Step 8.
|
|
6
|
INSPECT COUPLER COMPONENT (8-PIN) TERMINALS CONDITION
• Turn ignition key to OFF.
• Disconnect coupler component (8-pin) connector.
• Inspect bent coupler component (8-pin) terminals.
• Is there any malfunction?
|
Yes
|
Repair or replace connector and/or terminal.
|
|
No
|
Go to next step.
|
|
7
|
INSPECT COUPLER COMPONENT (8-PIN) CIRCUIT FOR SHORT TO GROUND
• Check continuity between coupler component (8-pin) terminals (part-side) and body ground.
-
- I and body ground
-
- J and body ground
• Is there any continuity?
|
Yes
|
Replace TFT sensor, then go to Step 9.
|
|
No
|
Repair or replace coupler component, then go to Step 9.
|
|
8
|
INSPECT TERMINAL COMPONENT NO.2 (8-PIN) CIRCUIT FOR SHORT TO GROUND
• Turn ignition key to OFF.
• Check continuity between terminal component No.2 terminal G (harness-side) and body ground.
• Is there any continuity?
|
Yes
|
Repair or replace harness, then go to next step.
|
|
No
|
Go to next step.
|
|
9
|
VERIFY TROUBLESHOOTING OF DTC P0712 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using WDS or equivalent.
• Drive vehicle under following condition for 150 s or more.
-
- Vehicle speed (VSS PID): 20 km/h {12 mph}
• Is same DTC present?
|
Yes
|
Replace TCM, then go to next step.
|
|
No
|
Go to next step.
|
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "After Repair Procedure".
• Is there any DTC present?
|
Yes
|
Go to applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
