1. Disconnect the negative battery cable.
2. For R.H.D., perform the following procedures.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

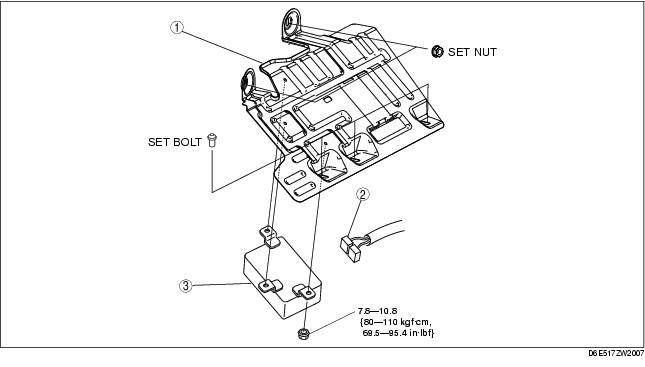

U.K. specs.
.
|
1
|
Control unit bracket
(See Set Nut/bolt Removal Note.)
|
|
2
|
TCM connector
|
|
3
|
TCM
|

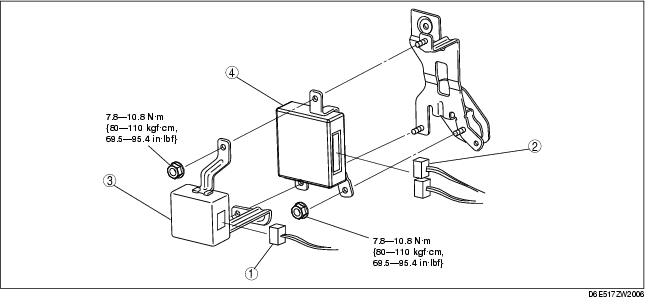

European (L.H.D.) specs.
.

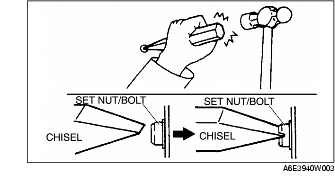

1. Using a chisel and hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.
2. Loose the set nut/bolt using an impact screwdriver or pliers.

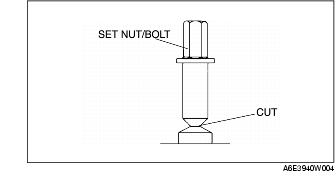

1. Install a new set nut/bolt and tighten it until the neck of the nut/bolt is cut.
