STEP
|
INSPECTION
|
ACTION
|
|
1
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Check for related Service Bulletins and/or on-line repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to next step.
|
|
No
|
Go to next step.
|
|
2
|

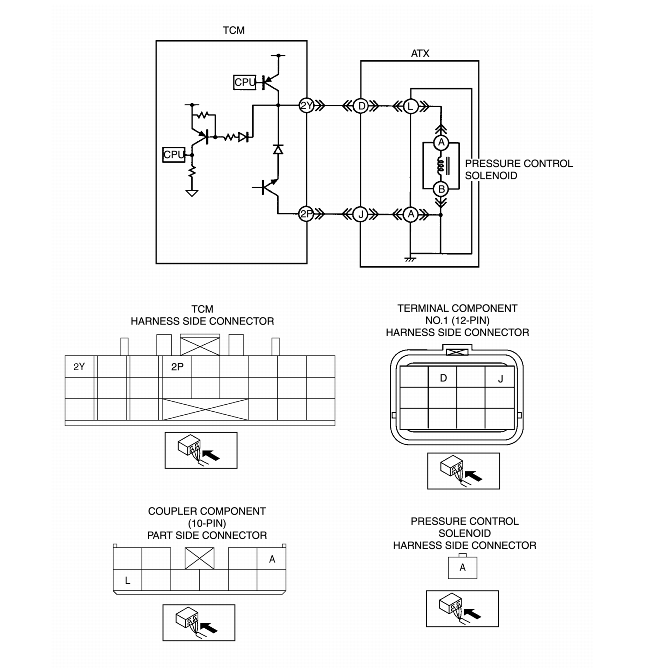

INSPECT TERMINAL COMPONENT NO.1 (12-PIN) FOR POOR CONNECTION
• Turn ignition key to OFF.
• Disconnect terminal componentNo.1 (12-pin).
• Check for poor connection (damaged, pulled-out, terminals, corrosion, etc.).
• Are terminals okay?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace terminals, then go to Step 12.
|
|
3
|
INSPECT RESISTANCE
• Check resistance between terminal component No.1 (12-pin) terminal D (transaxle case side) and body ground.
• Is resistance within 2.6-3.2 ohms?
|
Yes
|
Go to Step 8.
|
|
No
|
Go to next step.
|
|
4
|
INSPECT COUPLER COMPONENT (10-PIN) FOR POOR CONNECTION
• Disconnect coupler component (10-pin) connector.
• Check for poor connection (damaged, pulled-out, terminals, corrosion, etc.).
• Is terminal okay?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace terminal, then go to Step 12.
|
|
5
|
INSPECT RESISTANCE
• Check resistance between coupler component (10-pin) terminal L (part side) and body ground.
• Is resistance within 2.6-3.2 ohms?
|
Yes
|
Repair or replace terminal component No.1 (12-pin), then go to Step 12.
|
|
No
|
Go to next step.
|
|
6
|
INSPECT PRESSURE CONTROL SOLENOID CONNECTOR FOR POOR CONNECTION
• Disconnect pressure control solenoid connector.
• Check for poor connection (damaged, pulled-out, terminals, corrosion, etc.).
• Is terminal okay?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace terminal, then go to Step 12.
|
|
7
|
INSPECT RESISTANCE
• Check resistance between pressure control solenoid connector (part side) terminal A and body ground.
• Is resistance within 2.6-3.2 ohms?
|
Yes
|
Repair or replace coupler component (10-pin), then go to Step 12.
|
|
No
|
Verify pressure control solenoid installation.
• If pressure control solenoid is installed correctly, replace pressure control solenoid, then go to Step 12
|
|
8
|
INSPECT TCM CONNECTOR FOR POOR CONNECTION
• Disconnect TCM connector.
• Check for poor connection (damaged, pulled-out, terminals, corrosion, etc.).
• Are terminals okay?
|
Yes
|
Go to next step.
|
|
No
|
Repair terminals, then go to Step 12.
|
|
9
|
INSPECT TERMINAL COMPONENT NO.1 (12-PIN) CIRCUIT FOR OPEN CIRCUIT
• Check continuity between TCM terminal 2Y (harness-side) and terminal component No.1 (12-pin) terminal D (harness-side).
• Is there continuity between terminals?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace harness, then go to Step 12.
|
|
10
|
INSPECT TERMINAL COMPONENT NO.1 (12-PIN) CIRCUIT FOR SHORT TO POWER
• Turn ignition key to ON (engine OFF).
• Check voltage at terminal component No.1 (12-pin) terminal D (harness-side).
• Is voltage 0 V?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace harness, then go to Step 12.
|
|
11
|
INSPECT TCM CIRCUIT FOR SHORT TO GROUND
• Turn ignition key to OFF.
• Check continuity between TCM terminal 2Y (harness-side) and body ground.
• Is there any continuity?
|
Yes
|
Repair or replace harness, then go to next step.
|
|
No
|
Go to next step.
|
|
12
|
VERIFY TROUBLESHOOTING OF DTC P0748 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using WDS or equivalent.
• Drive vehicle in D range and make sure that gears shift smoothly from 1GR to 5GR.
• Is same DTC present?
|
Yes
|
Replace TCM, then go to next step.
|
|
No
|
Go to next step.
|
|
13
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "After Repair Procedure".
• Is there any DTC present?
|
Yes
|
Go to applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
