INPUT/TURBINE SPEED SENSOR INSPECTION [JA5AX-EL]

On-Vehicle Inspection

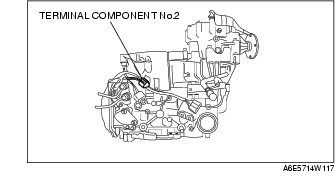

1. Disconnect the terminal component No.2 connector.

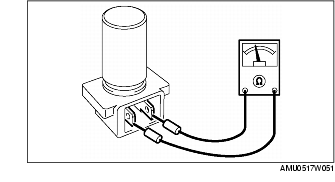

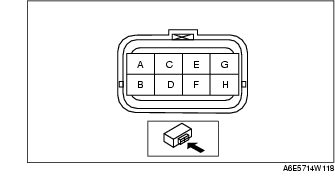

2. Measure resistance between the terminals E and F.

• If not as specified, inspect the input/turbine speed sensor. (See Inspection of Individual Part.)

Resistance: 513-627 ohms (ATF temperature: 20 °C {68 °F})

3. Connect the terminal component No.2 connector.

Inspection of Individual Part

1. Remove the input/turbine speed sensor. (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [JA5AX-EL].)

2. Measure resistance between the terminals of the input/turbine speed sensor.

• If not as specified, replace the input/turbine speed sensor.

• If it is normal, replace the harness.

Resistance: 513-627 ohms (ATF temperature: 20 °C {68 °F})

3. Install the input/turbine sensor. (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [JA5AX-EL].)
