1. Disconnect the negative battery cable.
2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [4SD, 5HB].) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [WGN].)

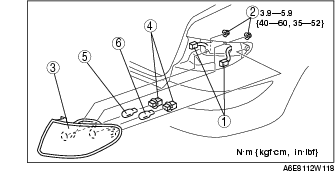

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Bolt
|
|
3
|
Rear combination light
|
|
4
|
Socket
|
|
5
|
Rear turn light bulb
|
|
6
|
Brake light/taillight bulb
|
4. Install in the reverse order of removal.
