DTC P0A94:00 [PCM (SKYACTIV-D)]

Home  id0102t5004400

Note

•  To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

Description	DC-DC converter: control circuit signal error
Detection condition	Determination conditions	•  Internal malfunction signal from DC-DC converter is received. (LIN communication). •  Input signal from the DC-DC converter limits the pressure increase time. •  Input signal from the DC-DC converter does not implement pressure increase after a pressure increase command to the DC-DC converter.
	Preconditions	•  Not applicable.
	Drive cycle	•  1
	Self test type	•  CMDTC self test
	Sensor used	•  Not applicable
Fail-safe function	•  Inhibits engine-stop by operating the i-stop function.
Vehicle status when DTCs are output	•  Flash the i-stop warning light (amber)
Possible cause	•  Battery malfunction •  DC-DC converter connector or terminals malfunction •  Short to ground or open circuit in DC-DC converter power supply circuit •  PCM connector or terminals malfunction •  Short to ground in DC-DC converter signal circuit •  Short to power supply in DC-DC converter signal circuit •  Open circuit in DC-DC converter signal circuit •  DC-DC converter malfunction •  PCM malfunction

Function Explanation (DTC Detection Outline)

Repeatability Verification Procedure

PID Item/Simulation Item Used In Diagnosis

Function Inspection Using M-MDS

Step	Inspection	Results	Action
1	PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY •  Verify related Service Bulletins, on-line repair information, or Service Information availability. •  Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. •  If the vehicle is not repaired, go to the next step.
		No	Go to the next step.
2	PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the freeze frame data/snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
3	PURPOSE: VERIFY IF BATTERY VOLTAGE IS FALSELY RECOGNIZED BY DTC RELATED CAN OR LIN COMMUNICATION •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D)].) Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
		No	Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.

Troubleshooting Diagnostic Procedure

―  Perform a unit inspection of the battery.

―  Verify if a malfunction is occurring due to a malfunction in each signal transmission and the boost demand line.

―  Verify if malfunctioning part is DC-DC converter.

―  Verify that the primary malfunction is resolved and there are no other malfunctions.

Step	Inspection	Results	Action
1	PURPOSE: INSPECT BATTERY FOR MALFUNCTION •  Inspect the applicable part. (See BATTERY INSPECTION [(E)].) •  Is the part normal?	Yes	Go to the next step.
		No	Recharge or replace the battery and perform the repair completion verification 1. (See BATTERY RECHARGING [(E)].)
2	PURPOSE: INSPECT DC-DC CONVERTER CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
3	PURPOSE: INSPECT DC-DC CONVERTER POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the power supply circuit for an open circuit and short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.

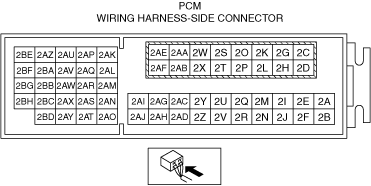

4	PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
5	PURPOSE: INSPECT DC-DC CONVERTER SIGNAL CIRCUIT FOR SHORT TO GROUND •  Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
6	PURPOSE: INSPECT DC-DC CONVERTER SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
7	PURPOSE: INSPECT DC-DC CONVERTER SIGNAL CIRCUIT FOR OPEN CIRCUIT •  Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
8	PURPOSE: PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING PART IS DC-DC CONVERTER •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ―  Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Replace the DC-DC converter and perform the repair completion verification 1. (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
		No	Go to repair completion verification 2.
Repair completion verification 1	PURPOSE: VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ―  Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
		No	Go to the next step.
Repair completion verification 2	PURPOSE: VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
