DTC P06A1:00 [PCM (SKYACTIV-D)]

id0102t5010100

Outline

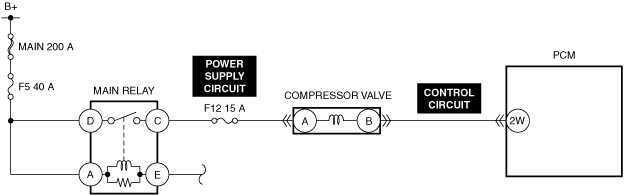

System malfunction location

Compressor valve circuit low input

Detection condition

•  The compressor valve control voltage at the PCM terminal 2W is low for a continuous 5 s relative to the PCM control signal.

Fail-safe

•  Not applicable

Possible cause

•  Compressor valve connector or terminals malfunction

•  F12 15 A fuse malfunction

•  Short to ground in compressor valve power supply circuit

•  Open circuit in compressor valve power supply circuit

•  Short to ground in compressor valve control circuit

•  PCM connector or terminals malfunction

•  Open circuit in compressor valve control circuit

•  Compressor valve malfunction (built-into A/C compressor)

•  PCM malfunction

System malfunction location	Compressor valve circuit low input
Detection condition	• The compressor valve control voltage at the PCM terminal 2W is low for a continuous 5 s relative to the PCM control signal.
Fail-safe	• Not applicable
Possible cause	• Compressor valve connector or terminals malfunction • F12 15 A fuse malfunction • Short to ground in compressor valve power supply circuit • Open circuit in compressor valve power supply circuit • Short to ground in compressor valve control circuit • PCM connector or terminals malfunction • Open circuit in compressor valve control circuit • Compressor valve malfunction (built-into A/C compressor) • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT COMPRESSOR VALVE CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

4

INSPECT F12 15 A FUSE

•  Remove the F12 15 A fuse.

•  Inspect the F12 15 A fuse.

•  Is the fuse normal?

Yes

Reinstall the F12 15 A fuse, then go to the next step.

No

Replace the F12 15 A fuse and perform the repair completion verification 1.

5

INSPECT COMPRESSOR VALVE POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

6

INSPECT COMPRESSOR VALVE POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

7

INSPECT COMPRESSOR VALVE CONTROL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

8

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

9

INSPECT COMPRESSOR VALVE CONTROL CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification 1.

10

INSPECT COMPRESSOR VALVE FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Replace the A/C compressor and perform the repair completion verification 1.

(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
