DTC P1589:00 [PCM (SKYACTIV-D)]

id0102t5149700

Outline

System malfunction location

Intake shutter valve circuit range/performance problem

Detection condition

•  With the following conditions met, the difference between the target intake shutter valve opening angle and the actual value exceeds 4.2 ° for a continuous 2 s.

―  Battery voltage: 8—16 V

―  0.5 s have elapsed after ignition is switched ON (engine off or on)

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0653:00, P0652:00

•  Intake shutter valve position sensor: P0122:00, P0123:00

•  Intake shutter valve control system: P2101:00

Fail-safe

•  PCM restricts engine torque.

•  Limits the maximum engine speed.

•  Inhibits the DENOx/DESOx control.

•  Inhibits the diesel particulate filter regeneration control.

•  Inhibits the EGR control.

•  Inhibits engine-stop by operating the i-stop function.

Possible cause

•  Intake shutter valve connector or terminal malfunction

•  Short to ground in intake shutter valve control circuit

•  PCM connector or terminal malfunction

•  Intake shutter valve malfunction

―  Intake shutter valve sticking, poor operation

―  Intake shutter valve frozen

―  Intake shutter valve foreign matter penetration

•  Intake shutter valve position sensor malfunction

•  PCM malfunction

System malfunction location	Intake shutter valve circuit range/performance problem
Detection condition	• With the following conditions met, the difference between the target intake shutter valve opening angle and the actual value exceeds 4.2 ° for a continuous 2 s. ― Battery voltage: 8—16 V ― 0.5 s have elapsed after ignition is switched ON (engine off or on) ― The following DTCs are not detected • Constant voltage power supply control system: P0653:00, P0652:00 • Intake shutter valve position sensor: P0122:00, P0123:00 • Intake shutter valve control system: P2101:00
Fail-safe	• PCM restricts engine torque. • Limits the maximum engine speed. • Inhibits the DENOx/DESOx control. • Inhibits the diesel particulate filter regeneration control. • Inhibits the EGR control. • Inhibits engine-stop by operating the i-stop function.
Possible cause	• Intake shutter valve connector or terminal malfunction • Short to ground in intake shutter valve control circuit • PCM connector or terminal malfunction • Intake shutter valve malfunction ― Intake shutter valve sticking, poor operation ― Intake shutter valve frozen ― Intake shutter valve foreign matter penetration • Intake shutter valve position sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT FOR OTHER RELATED DTCs

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D)].)

No

Go to the next step.

4

INSPECT INTAKE SHUTTER VALVE FOR FOREIGN MATTER

•  Remove the intake shutter valve.
(See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

•  Inspect the intake shutter valve for foreign matter.

•  Is there foreign matter in the intake shutter valve?

Yes

Remove the foreign matter from the intake shutter valve, then go to repair completion verification.

No

Go to the next step.

5

INSPECT INTAKE SHUTTER VALVE CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

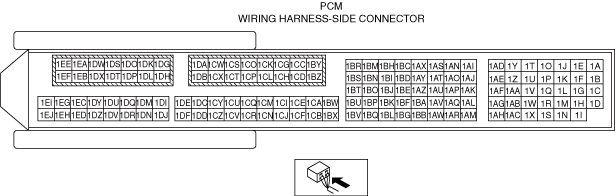

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT INTAKE SHUTTER VALVE CONTROL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT INTAKE SHUTTER VALVE FOR MALFUNCTION

•  Inspect the applicable part.
(See INTAKE SHUTTER VALVE INSPECTION [SKYACTIV-D 1.8].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

9

INSPECT INTAKE SHUTTER VALVE POSITION SENSOR FOR MALFUNCTION

•  Inspect the applicable part.
(See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See INTAKE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Drive the vehicle on flat roads under the following conditions 5 times repeatedly.

1.  Idle the engine for 20 s.

2.  Accelerate in 2nd gear to 35 km/h and drive the vehicle while maintaining the speed for 25 s.

3.  Stop the vehicle and idle the engine for 20 s.

4.  Accelerate in 3rd gear to 50 km/h and drive the vehicle while maintaining the speed for 50 s.

5.  Stop the vehicle and idle the engine for 20 s.

―  Stop the engine.

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT FOR OTHER RELATED DTCs • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D)].)
3		No	Go to the next step.
4	INSPECT INTAKE SHUTTER VALVE FOR FOREIGN MATTER • Remove the intake shutter valve. (See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) • Inspect the intake shutter valve for foreign matter. • Is there foreign matter in the intake shutter valve?	Yes	Remove the foreign matter from the intake shutter valve, then go to repair completion verification.
4		No	Go to the next step.
5	INSPECT INTAKE SHUTTER VALVE CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT INTAKE SHUTTER VALVE CONTROL CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT INTAKE SHUTTER VALVE FOR MALFUNCTION • Inspect the applicable part. (See INTAKE SHUTTER VALVE INSPECTION [SKYACTIV-D 1.8].) • Is the part normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
9	INSPECT INTAKE SHUTTER VALVE POSITION SENSOR FOR MALFUNCTION • Inspect the applicable part. (See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].) • Is the part normal?	Yes	Go to the next step.
9		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See INTAKE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Drive the vehicle on flat roads under the following conditions 5 times repeatedly. 1. Idle the engine for 20 s. 2. Accelerate in 2nd gear to 35 km/h and drive the vehicle while maintaining the speed for 25 s. 3. Stop the vehicle and idle the engine for 20 s. 4. Accelerate in 3rd gear to 50 km/h and drive the vehicle while maintaining the speed for 50 s. 5. Stop the vehicle and idle the engine for 20 s. ― Stop the engine. • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
