DTC P0107:00 [PCM (SKYACTIV-D)]

id0102t5701100

Outline

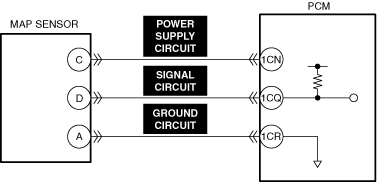

System malfunction location

MAP sensor circuit low input

Detection condition

•  With the following conditions met, the MAP sensor voltage is less than 0.16 V for a continuous 4 s.

―  Battery positive voltage: 8—16 V

―  0.5 s have elapsed after ignition is switched ON (engine off or on)

―  Any one of the following conditions is met

•  Intake shutter valve opening angle: 8 ° or more

•  EGR control is being performed and diesel particulate filter regeneration control is not performed

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0642:00, P0643:00

Fail-safe

•  PCM restricts engine torque.

•  Limits the maximum engine speed.

•  Inhibits the DENOx/DESOx control.

•  Inhibits the diesel particulate filter regeneration control.

•  Inhibits the boost control.

•  Inhibits the EGR control.

•  PCM restricts engine-transaxle integration control. (ATX)

•  Inhibits the boost control.

•  Inhibits engine-stop by operating the i-stop function.

Possible cause

•  MAP sensor connector or terminal malfunction

•  PCM connector or terminal malfunction

•  Short to ground in any of the following MAP sensor circuits.

―  Power supply circuit

―  Signal circuit

•  Short circuit in MAP sensor signal circuit and ground circuit

•  Open circuit in MAP sensor power supply circuit

•  MAP sensor malfunction

•  PCM malfunction

System malfunction location	MAP sensor circuit low input
Detection condition	• With the following conditions met, the MAP sensor voltage is less than 0.16 V for a continuous 4 s. ― Battery positive voltage: 8—16 V ― 0.5 s have elapsed after ignition is switched ON (engine off or on) ― Any one of the following conditions is met • Intake shutter valve opening angle: 8 ° or more • EGR control is being performed and diesel particulate filter regeneration control is not performed ― The following DTCs are not detected • Constant voltage power supply control system: P0642:00, P0643:00
Fail-safe	• PCM restricts engine torque. • Limits the maximum engine speed. • Inhibits the DENOx/DESOx control. • Inhibits the diesel particulate filter regeneration control. • Inhibits the boost control. • Inhibits the EGR control. • PCM restricts engine-transaxle integration control. (ATX) • Inhibits the boost control. • Inhibits engine-stop by operating the i-stop function.
Possible cause	• MAP sensor connector or terminal malfunction • PCM connector or terminal malfunction • Short to ground in any of the following MAP sensor circuits. ― Power supply circuit ― Signal circuit • Short circuit in MAP sensor signal circuit and ground circuit • Open circuit in MAP sensor power supply circuit • MAP sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT MAP SENSOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT MAP SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT MAP SENSOR GROUND CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT

•  Inspect the applicable circuits for a short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to repair completion verification.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT MAP SENSOR POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT MAP SENSOR FOR MALFUNCTION

•  Inspect the applicable part.
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 1.8])

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8])

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self-test.
(See DTC INSPECTION)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
