DTC P0130:00 [PCM (SKYACTIV-D)]

DTC P0130:00 [PCM (SKYACTIV-D)]


 id0102t5702100


Outline

System malfunction location

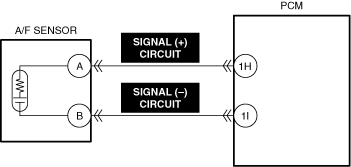

A/F sensor control circuit problem

Detection condition
•  With the following conditions met, the A/F sensor voltage is less than 0.106 V for a continuous 5 s.
―  A/F sensor terminal B voltage: 3.678 V or more, or 4.353 V or less
―  Battery positive voltage: 11—16 V
―  Ignition is switched ON (engine on)
Fail-safe
•  PCM restricts engine torque.
•  Limits the maximum engine speed.
•  Inhibits the DENOx/DESOx control.
•  Inhibits the diesel particulate filter regeneration control.
•  Inhibits the EGR control.
Possible cause
•  A/F sensor connector or terminal malfunction
•  Short circuit in A/F sensor signal (+) circuit and signal (-) circuit
•  PCM connector or terminal malfunction
•  A/F sensor malfunction
•  PCM malfunction


Diagnostic Procedure

Step

Inspection

Results

Action

1
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
•  Record the freeze frame data/snapshot data.
Note
•  Recording can be facilitated using the screen capture function of the PC.
Go to the next step.
2
VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
•  Verify related Service Bulletins, on-line repair information, or Service Information availability.
•  Is any related Information available?
Yes
Perform repair or diagnosis according to the available information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FOR OTHER RELATED DTCs
•  Perform the DTC inspection for the PCM.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
Go to the next step.
4
INSPECT A/F SENSOR CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
5
INSPECT PCM CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
6
INSPECT A/F SENSOR POWER SIGNAL (+) CIRCUIT AND SIGNAL (-) CIRCUIT FOR SHORT CIRCUIT
•  Inspect the applicable circuits for a short circuit.
•  Is the circuit normal?
Yes
Go to repair completion verification.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
7
INSPECT A/F SENSOR FOR MALFUNCTION
•  Inspect the applicable part.
•  Is the part normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1
PURPOSE: VERIFY THAT VEHICLE IS REPAIRED
•  Install/connect the part removed/disconnected during the troubleshooting procedure.
•  Clear the DTC recorded in the memory.
•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
―  Perform the KOEO or KOER self-test.
•  Perform the DTC inspection for the PCM.
•  Is the same Pending DTC present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction recurs, replace the PCM, then go to the next step.
No
Go to the next step.
Repair completion verification 2
PURPOSE: VERIFY IF OTHER DTCs DISPLAYED
•  Perform the DTC inspection.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
