DTC U1203:00 [PCM (SKYACTIV-D)]

Home  id0102t5868100

Outline

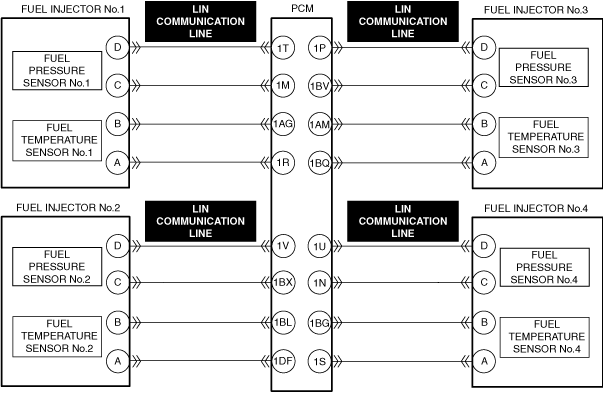

System malfunction location	LIN communication system: fuel Injector No.3 information communication error with PCM
Detection condition	•  If any of the following conditions is met under condition A or condition B: Condition A: ―  With all the following conditions met, a communication error between fuel injector No.3 and the PCM occurs. •  Battery positive voltage: 10.5—18.0 V •  Fuel injector: DTCs P10C2:00, P10C3:00, P10C5:00, P10C6:00, P10C8:00, P10C9:00, P10CB:00, and P10CC:00 are not detected Condition B: ―  With all of the following conditions met, the PCM cannot identify fuel injector No.3 with the ignition switched ON (engine off or on). •  Battery positive voltage: 10.5—18.0 V •  Fuel injector: DTCs P10C2:00, P10C3:00, P10C5:00, P10C6:00, P10C8:00, P10C9:00, P10CB:00, and P10CC:00 are not detected
Fail-safe	•  Not applicable
Possible cause	•  Short to power supply in fuel injector No.1, No.2, No.3 and No.4 LIN communication line •  Short to ground in fuel injector LIN communication line •  Open circuit in fuel injector No.3 LIN communication line •  Fuel injector No.3 connector or terminal malfunction •  Fuel injector No.3 malfunction •  PCM connector or terminal malfunction •  PCM malfunction

Diagnostic Procedure

Caution

•  If a hand or tool touches the fuel injector terminal, the fuel injector might be damaged. To prevent this, do not touch the terminal.

•  If high-voltage generating parts or components and electronic devices come near a fuel injector, the fuel injector could be damaged. To prevent damage to a fuel injector, always keep high-voltage generating parts or components and electronic devices away from it.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the freeze frame data/snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY •  Verify related Service Bulletins, on-line repair information, or Service Information availability. •  Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. •  If the vehicle is not repaired, go to the next step.
		No	Go to the next step.
3	INSPECT FOR OTHER RELATED DTCs •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D)].)
		No	Go to the next step.
4	INSPECT FUEL INJECTOR No.3 CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.

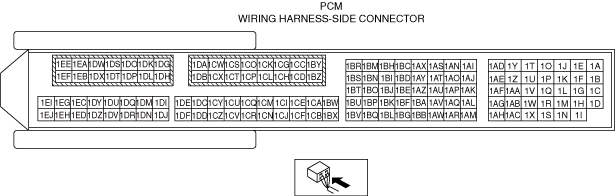

5	INSPECT PCM CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT FUEL INJECTOR No.1, No.2, No.3 AND No.4 COMMUNICATION LINE FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT FUEL INJECTOR No.1, No.2, No.3 AND No.4 COMMUNICATION LINE FOR SHORT TO GROUND •  Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT FUEL INJECTOR No.3 COMMUNICATION LINE FOR OPEN CIRCUIT •  Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT FUEL INJECTOR No.3 FOR MALFUNCTION •  Inspect the applicable part. (See FUEL INJECTOR INSPECTION [SKYACTIV-D 1.8].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ―  Switch the ignition ON (engine off) and leave for 10 s. •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
