DTC U0284:00 [PCM (SKYACTIV-D)]

DTC U0284:00 [PCM (SKYACTIV-D)]


 id0102t5910400

Note
•  To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

Description

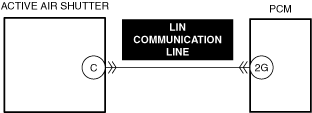

LIN communication system: Communication error between active air shutter and PCM

Detection condition
Determination conditions
•  PCM detects a communication error between the active air shutter and PCM.
Preconditions
•  The following conditions continue for 1.5 s:
―  Battery voltage: 10 V *1or more
―  Switch the ignition ON (engine off or on)
*1: Standard can be verified by displaying PIDs using M-MDS
Malfunction determination period
•  5 s period
Drive cycle
•  1
Self test type
•  CMDTC self test
Sensor used
•  PCM
Fail-safe function
•  Not applicable
Vehicle status when DTCs are output
•  The active air shutter cannot be controlled, therefore it is constantly open.
Possible cause
•  LIN communication line malfunction between active air shutter and PCM


Function Explanation (DTC Detection Outline)

•  The PCM detects a DTC when there is a LIN communication error with the PCM and active air shutter.

Repeatability Verification Procedure

1.  Switch the ignition ON (engine off or on) and wait for 10 s or more.

PID Item/Simulation Item Used In Diagnosis

•  Not applicable

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1
PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
•  Verify related Service Bulletins, on-line repair information, or Service Information availability.
•  Is any related Information available?
Yes
Perform repair or diagnosis according to the available information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
•  Record the freeze frame data/snapshot data.
Note
•  Recording can be facilitated using the screen capture function of the PC.
Go to the next step.
3
PURPOSE: VERIFY OTHER RELATED DTCs
•  Perform the DTC inspection for the PCM.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
Go to the next step.


Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure
•  Step 1—5
―  Perform an inspection of the connectors and wiring harnesses between the active air shutter and the PCM.
•  Repair completion verification
―  Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

2
PURPOSE: INSPECT ACTIVE AIR SHUTTER CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
2
PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
3
PURPOSE: INSPECT ACTIVE AIR SHUTTER LIN COMMUNICATION LINE FOR SHORT TO GROUND
•  Inspect the applicable circuit for a short to ground.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
4
PURPOSE: INSPECT ACTIVE AIR SHUTTER LIN COMMUNICATION LINE FOR OPEN CIRCUIT
•  Inspect the applicable circuit for open circuit.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
5
PURPOSE: INSPECT ACTIVE AIR SHUTTER FOR MALFUNCTION
•  Inspect the applicable part.
•  Is the part normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1
PURPOSE: VERIFY THAT VEHICLE IS REPAIRED
•  Install/connect the part removed/disconnected during the troubleshooting procedure.
•  Clear the DTC recorded in the memory.
•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
―  Implement the repeatability verification procedure.
•  Perform the DTC inspection for the PCM.
•  Is the same Pending DTC present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction recurs, replace the PCM, then go to the next step.
No
Go to the next step.
Repair completion verification 2
PURPOSE: VERIFY IF OTHER DTCs DISPLAYED
•  Perform the DTC inspection.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
