DTC P0522:00 [PCM (SKYACTIV-X)]

id0102u9212800

Outline

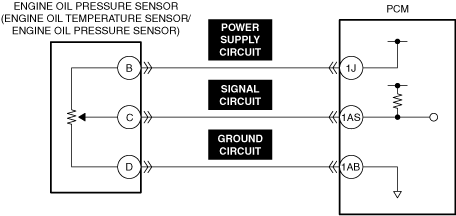

System malfunction location

Engine oil pressure sensor circuit low input

Detection condition

•  The engine oil pressure sensor output voltage is less than 0.12 V for a continuous 2 s.

Precondition

•  Battery voltage: 8—20 V

•  0.5 s have elapsed after the ignition was switched ON (engine off or on)

Fail-safe

•  Restricts the upper limit of the engine speed.

•  PCM restricts engine torque.

Possible cause

•  Engine oil temperature sensor/engine oil pressure sensor connector or terminals malfunction

•  PCM connector or terminals malfunction

•  Short to ground in any of the following engine oil pressure sensor circuits.

―  Power supply circuit

―  Signal circuit

•  Short circuit in engine oil pressure sensor signal circuit and ground circuit

•  Open circuit in engine oil pressure sensor power supply circuit

•  Engine oil pressure sensor malfunction

•  PCM malfunction

System malfunction location	Engine oil pressure sensor circuit low input
Detection condition	• The engine oil pressure sensor output voltage is less than 0.12 V for a continuous 2 s. Precondition • Battery voltage: 8—20 V • 0.5 s have elapsed after the ignition was switched ON (engine off or on)
Fail-safe	• Restricts the upper limit of the engine speed. • PCM restricts engine torque.
Possible cause	• Engine oil temperature sensor/engine oil pressure sensor connector or terminals malfunction • PCM connector or terminals malfunction • Short to ground in any of the following engine oil pressure sensor circuits. ― Power supply circuit ― Signal circuit • Short circuit in engine oil pressure sensor signal circuit and ground circuit • Open circuit in engine oil pressure sensor power supply circuit • Engine oil pressure sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT ENGINE OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT ENGINE OIL PRESSURE SENSOR SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT CIRCUIT

•  Inspect the applicable circuits for a short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT ENGINE OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT ENGINE OIL PRESSURE SENSOR FOR MALFUNCTION

•  Inspect the applicable part.
(See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
