REAR OIL SEAL REPLACEMENT [SKYACTIV-X 2.0]
id0110hf800900
Special Service Tool (SST)
|
49 S033 101
Dust cover installer
|
|
Replacement Part
|
Rear oil seal
Quantity: 1
Location of use: Engine rear cover (lower)
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R (SKYACTIV-X 2.0)]. (2WD,MTX))(See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66MX-R (SKYACTIV-X 2.0)]. (AWD,MTX))(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)]. (2WD,ATX))(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)]. (AWD,ATX))
2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R, C66MX-R]. (MTX)) (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (E)]. (ATX))
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
ac30zw00004658
|
|
1
|
Rear oil seal
(See Rear Oil Seal Removal Note.)
|
Rear Oil Seal Removal Note
1. Cut the rear oil seal lip using a utility knife.
2. Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
ac30zw00004659
|
Rear Oil Seal Installation Note
1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the engine rear cover (lower) by hand.

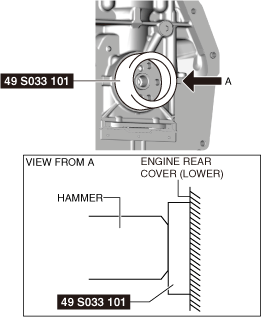

3. Tap the rear oil seal in evenly using the SST and a hammer.
ac30zw00004660
|

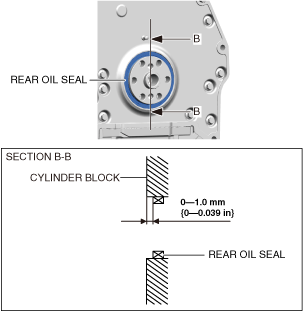

ac30zw00004661
|
