DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (E)]

DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (E)]


 id0517n31173y3

Special Service Tool (SST)

49 E011 1A0

Ring gear brake set

Replacement Part

Bolt

Quantity: 6

Location of use: Drive plate

1.  Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (E)] AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (E)] AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-D 1.8)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)].)

2.  Remove in the order indicated in the table.

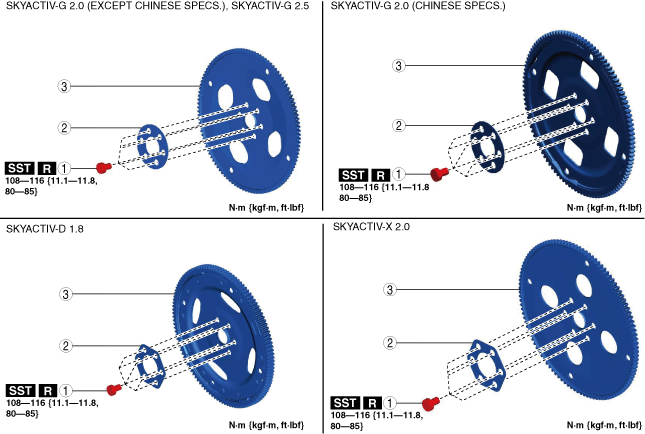

ac30zw00004144

1
Drive plate installation bolts
2
Backing plate
3
Drive plate

3.  Install in the reverse order of removal.


Drive Plate Installation Bolts Removal Note

1.  Set the SST against the drive plate.

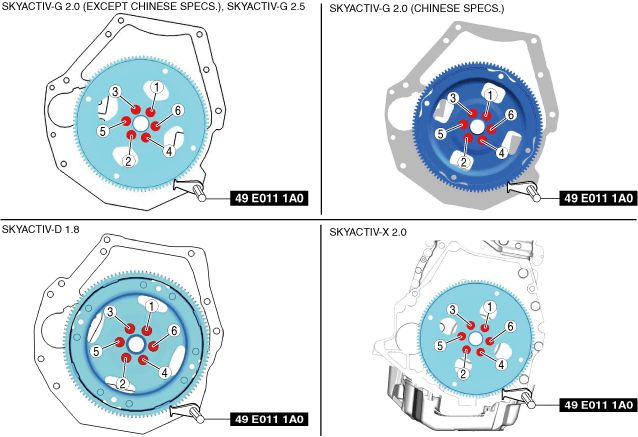

ac30zw00004145

2.  Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the figure, then remove the bolts and the drive plate.


Drive Plate Installation Bolts Installation Note

1.  Set the SST against the drive plate.

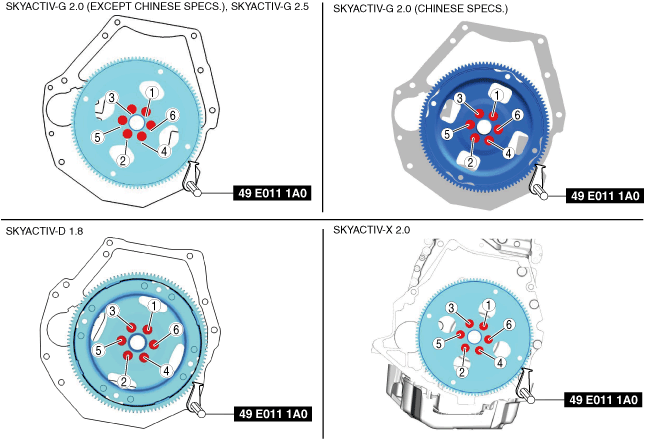

ac30zw00004146

2.  Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.
