• Hot engines and oil can cause severe burns. Be careful not to burn yourself during removal/installation of each component.
• Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
• Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.
― Fuel may cause irritation if it comes in contact with skin and eyes.
― If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
11. Install the SST using the following procedure:

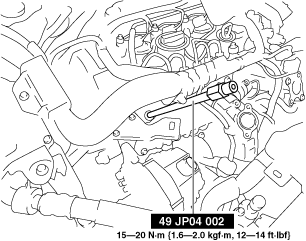

(1) Install the SST (49 JP04 002) to the glow plug installation hole.
am3zzw00034384
(2) Tighten the SST to the specified torque.

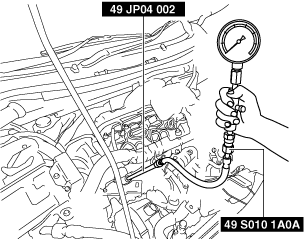

(3) Connect the SST (49 S010 1A0A) to the SST (49 JP04 002).
am3zzw00028903
12. Measure the compression pressure using the following procedure.
Note
• The cranking method is as follows.
MTX
― When the ignition switch is pressed with the clutch pedal depressed, cranking starts.
― When your foot is removed from the clutch pedal during cranking, cranking stops.
― When the ignition switch is pressed during cranking, cranking stops.
ATX
― When the ignition switch is pressed with the brake pedal depressed, cranking starts.
― When the ignition switch is pressed during cranking, cranking stops.
(1) Crank the engine and measure the following values simultaneously.
• Compression pressure
• Engine speed

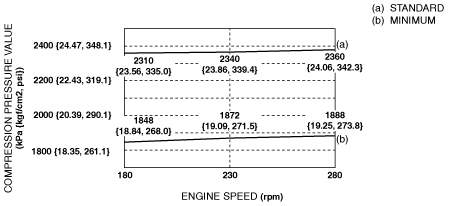

Compression pressure
am3zzw00028904
Standard: Refer to the graph.
Minimum: Refer to the graph.
Maximum difference between cylinders: 147 kPa {1.50 kgf/cm2, 21.3 psi} [180 rpm]
(2) Perform Step (1) for all cylinders.
(3) If a measurement is less than the minimum specification, or there is a cylinder which exceeds the specified difference between cylinders, add a small quantity of engine oil through the glow plug installation hole and perform Step (1).
• If the pressure increases by adding the engine oil, the piston ring or the cylinder surface is worn, or they are damaged. Perform overhaul servicing.
• If the pressure does not increase, valve seizure, valve attachment malfunction, or pressure leakage from the cylinder head gasket might be occurring. Perform overhaul servicing.
