REAR OIL SEAL REPLACEMENT [SKYACTIV-D 1.8]

REAR OIL SEAL REPLACEMENT [SKYACTIV-D 1.8]


 id0110t1800900

Special Service Tool (SST)

49 S033 101

Dust cover installer

Replacement Part

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

Engine oil

Type: Recommended oil

1.  Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R (SKYACTIV-D 1.8)] (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)] (ATX).)

2.  Remove the dual-mass flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R, C66MX-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (E)] (ATX).)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

ac3wzw00001779

1
Rear oil seal


Rear Oil Seal Removal Note

1.  Cut the rear oil seal lip using a utility knife.

2.  Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

am3zzw00028921


Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

2.  Insert the rear oil seal into the cylinder block by hand.

3.  Tap the rear oil seal in evenly using the SST and a hammer.

am3zzw00028922

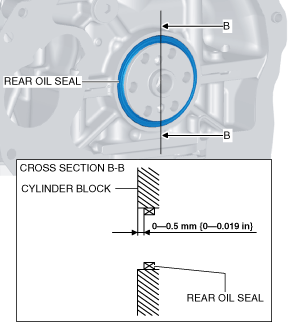

am3zzw00028923

Rear oil seal press on amount
0—0.5 mm {0—0.019 in} from edge surface of cylinder block
