ELECTRIC WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0112hf702000

Oil and chemical type

Warning

•  If the cooling system cap or the water-cooled charge air cooler reserve tank cap is removed when the engine is hot, steam and boiling water may be injected, causing severe burns or severe injury. Perform the removal of the cooling system cap and water-cooled charge air cooler reserve tank cap when the engine is cool.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

3.  Remove the following parts as a single unit: (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Air cleaner cover

•  Air cleaner element

•  Air cleaner case

•  Air hose

•  Fresh-air duct

4.  Remove front under cover No.1 and No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION)(See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Drain the water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

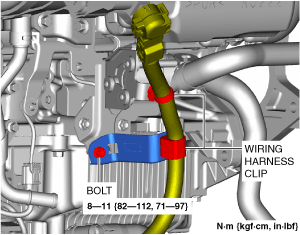

6.  Remove the wiring harness clips and bolt shown in the figure.

am3zzw00035615

7.  Remove using the procedure shown in the figure.

8.  Install in the reverse order of removal.

9.  Add water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

10.  Inspect the water-cooled charge air cooler for coolant leakage. (See WATER-COOLED CHARGE AIR COOLER COOLANT LEAKAGE INSPECTION [SKYACTIV-X 2.0].)

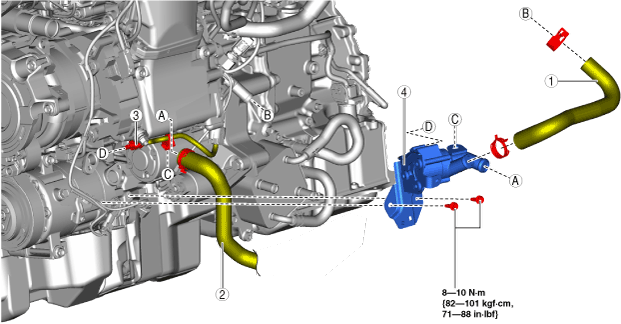

am3zzw00034984

1	Water hose (water-cooled charge air cooler side)
2	Water hose (electric water pump side)
3	Electric water pump connector, wiring harness
4	Electric water pump
