COOLING SYSTEM LOCATION INDEX [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

Home  id0112u3800100

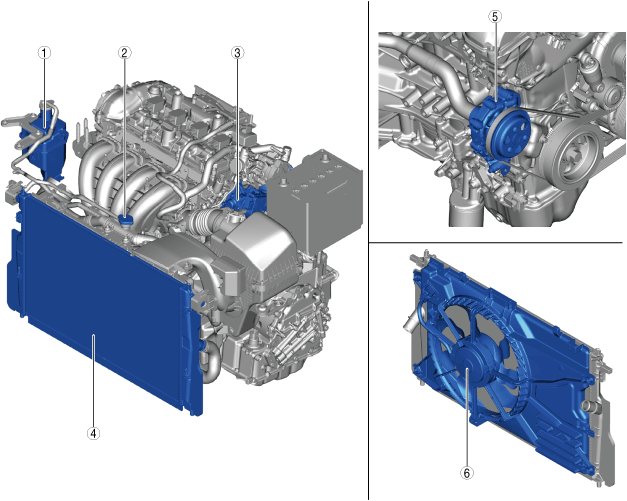

am3zzw00024373

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3	Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
6	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
