AIR BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0113hf070800
Replacement part
|
Gasket
Quantity: 1
Location of use: Air bypass valve
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)
3. Remove the bolts shown in the figure.
am3zzw00035622
|
4. Remove air pipe No.1. (See AIR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

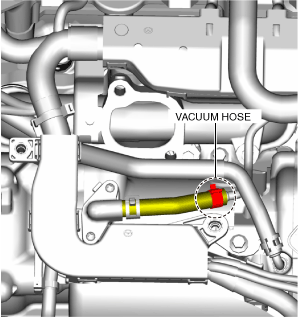

5. Disconnect the vacuum hose shown in the figure.
am3zzw00035623
|

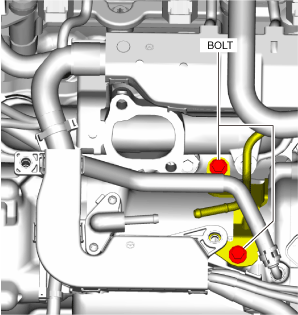

6. Remove the bolts shown in the figure. (See SUPERCHARGER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
am3zzw00035624
|

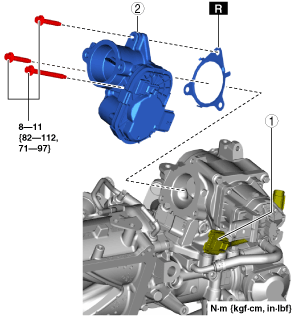

7. Remove using the procedure shown in the figure.
8. Install in the reverse order of removal.
am3zzw00035625
|
|
1
|
Air bypass valve connector
|
|
2
|
Air bypass valve
|
