FUEL DISTRIBUTOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0114hf802400

Warning

•  Always keep sparks and flames away from fuel. Fuel can be easily ignited which could cause serious injury or death, and damage to equipment.

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the [Fuel Line Safety Procedure] to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching a vehicle.

Caution

•  Do not remove the fuel pressure/fuel temperature sensor from the fuel distributor.

•  Do not let foreign matter get into the injection pipe to prevent clogging. In addition, always install the injection pipe to the specified tightening torque.

1.  Perform the [Fuel Line Safety Procedure] referring to the [BEFORE SERVICE PRECAUTION]. (See BEFORE SERVICE PRECAUTION [SKYACTIV-X 2.0].)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the injection pipe. (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4.  Disconnect the ignition coil No.2 and No.3 connectors. (See IGNITION COIL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

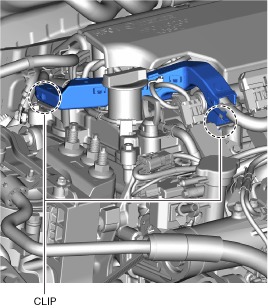

5.  Disconnect the wiring harness protect clips shown in the figure.

am3zzw00035815

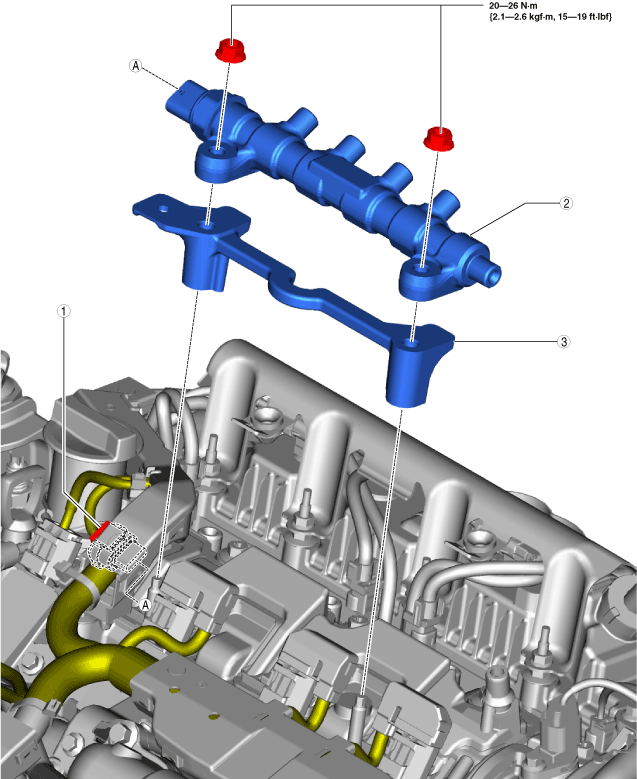

6.  Remove using the procedure shown in the figure.

7.  Install in the reverse order of removal.

am3zzw00035816

1	High fuel pressure/fuel temperature sensor
2	Fuel distributor (SeeFuel Distributor Installation Note.)
3	Fuel distributor bracket

Fuel Distributor Installation Note

1.  Temporarily tighten the fuel distributor installation nuts.

2.  Install the injection pipes. (See INJECTION PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

3.  Completely tighten the fuel distributor installation nuts.
