FUEL FILTER BODY REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0114q9800200

Replacement Part

Warning

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

Caution

•  If parts are exposed to the fuel, their function may be decreased or a fire may occur. Spread a rag to absorb any leaked fuel.

•  If fuel does not pass through the fuel filter, it could cause a fuel system malfunction. Therefore, do not install the fuel hoses (main and return side) in reverse. Always refer to the “AFTER SERVICE PRECAUTION” before installing the fuel hose, and execute the “Fuel Hose Installation Procedure”.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 1.8].)

3.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

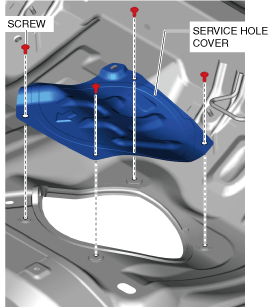

4.  Remove the service hole cover.

am3zzw00021189

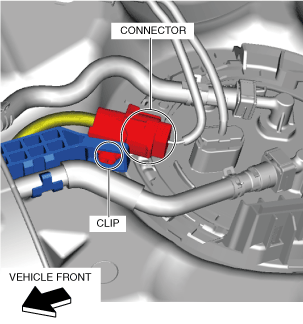

5.  Disconnect the connector and wiring harness clip.

am3zzw00028754

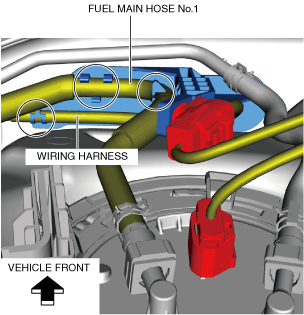

6.  Detach the fuel hose and wiring harness shown in the figure from the bracket.

am3zzw00028755

7.  Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

8.  Remove in the order shown in the figure.

9.  Install in the reverse order of removal.

10.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-D 1.8].)

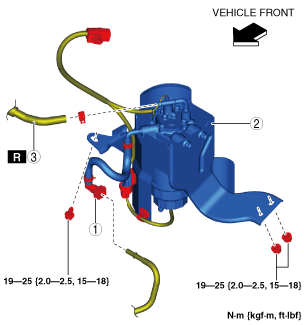

Step 1

am3zzw00031289

1	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2	Fuel filter component (See Fuel Filter Component Installation Note.)
3	Fuel main hose No.1 (See Fuel Main Hose No.1 Installation Note.)

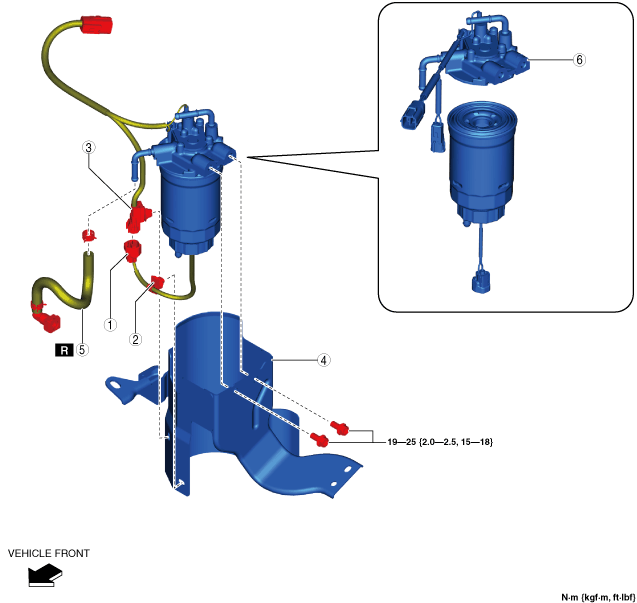

Step 2

am3zzw00031290

1	Sedimentor switch connector
2	Wiring harness clip
3	Wiring harness clip
4	Fuel filter bracket
5	Fuel main hose No.2 (See Fuel Main Hose No.2 Installation Note.)
6	Fuel filter body

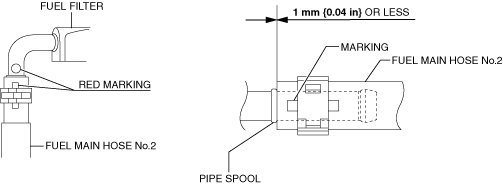

Fuel Main Hose No.2 Installation Note

1.  Install fuel main hose No.2 as shown in the figure.

am3zzw00032162

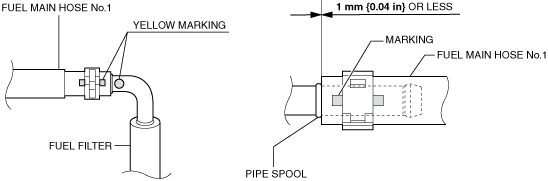

Fuel Main Hose No.1 Installation Note

1.  Install fuel main hose No.1 as shown in the figure.

am3zzw00032163

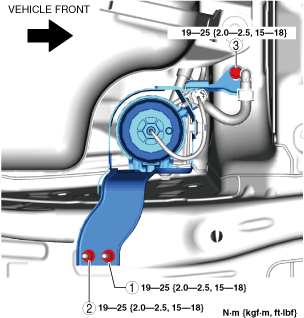

Fuel Filter Component Installation Note

1.  Tighten the fuel filter component installation bolt and nuts in the order as shown in the figure.

am3zzw00028759
