FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1

1.  Lift up the vehicle.

2.  Remove the tunnel cover. (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Remove the gusset. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

4.  Remove the bolts.

LH

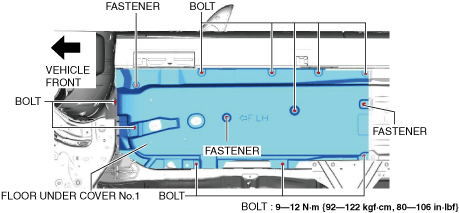

ac30zw00001492

RH

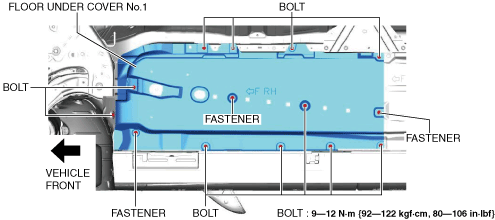

ac30zw00001493

5.  Remove the fasteners.

6.  Remove the floor under cover No.1.

7.  Install in the reverse order of removal.

Floor Under Cover No.2

1.  Lift up the vehicle.

2.  Remove the bolts.

LH

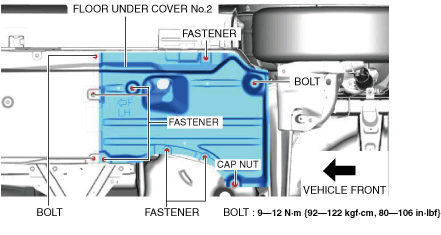

ac30zw00001494

RH

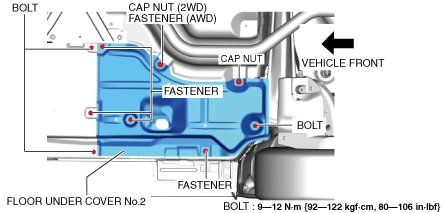

ac30zw00003004

3.  Remove the fasteners and cap nuts.

4.  Remove the floor under cover No.2.

5.  When removing the bracket, perform the following procedure (2WD) (RH only):

(1)  Remove the Insulator (middle). (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

(2)  Remove the nuts.

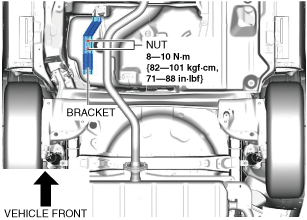

ac30zw00001496

(3)  Remove the bracket.

6.  Install in the reverse order of removal.
