CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]
id0116u1096400
Except Chinese specs.
1. Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
2. Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
3. Remove in the order indicated in the table.

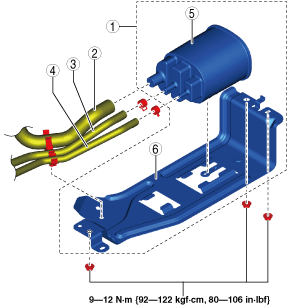

am3zzw00031345
|
|
1
|
Charcoal canister component
|
|
2
|
Evaporative hose No.1
|
|
3
|
Evaporative hose No.2
|
|
4
|
Evaporative hose No.3
|
|
5
|
Charcoal canister
(See Except Chinese specs..)
|
|
6
|
Charcoal canister bracket
|
4. Install in the reverse order of removal.
Charcoal Canister Removal Note (Except Chinese specs.)
1. Remove the charcoal canister and charcoal canister bracket as a single unit.
2. Release the lock as shown in the figure.
am3zzw00021206
|
3. Remove the charcoal canister.
Evaporative Hose Installation Note (Except Chinese specs.)
1. Install the evaporative hose as shown in the figure.
am3zzw00024030
|
Charcoal Canister Component Installation Note (Except Chinese specs.)
1. Install the charcoal canister bracket hook into the hole on the body.
am3zzw00022991
|
2. Temporarily tighten nut A.
3. Temporarily tighten nuts B.
4. Completely tighten nut A.
5. Completely tighten nuts B.
Chinese specs.
Charcoal Canister (Main)
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
3. Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

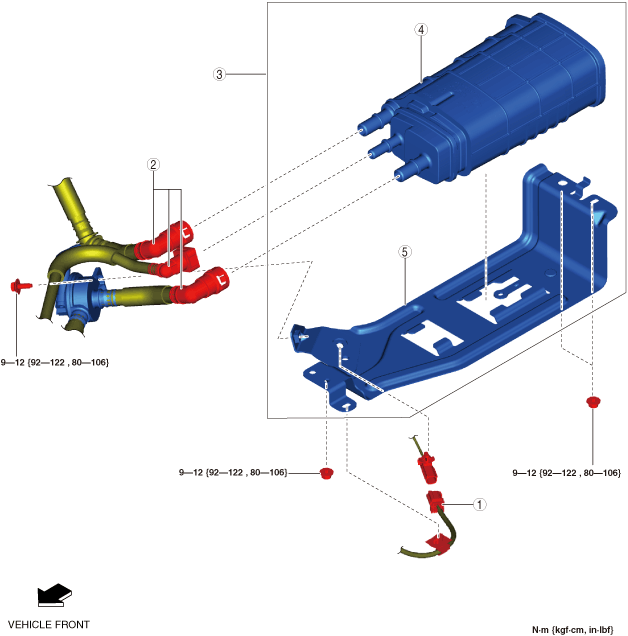

ac30zw00004234
|
|
1
|
Wiring harness connector
|
|
2
|
Quick release connector
|
|
3
|
Charcoal canister (main) component
(See Charcoal Canister (Main).)
|
|
4
|
Charcoal canister (main)
(See Chinese specs..)
|
|
5
|
Charcoal canister (main) bracket
|
Charcoal canister (main) removal note (Chinese specs.)
1. Remove the charcoal canister (main) and charcoal canister (main) bracket as a single unit.
2. Release the lock as shown in the figure.
am3zzw00021206
|
3. Remove the charcoal canister (main).
Charcoal canister (main) component installation note (Chinese specs.)

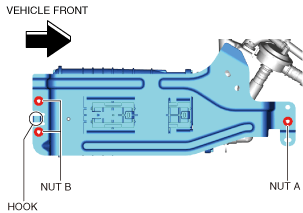

1. Install the charcoal canister (main) bracket hook into the hole on the body.
ac30zw00004235
|
2. Temporarily tighten nut A.
3. Temporarily tighten nuts B.
4. Completely tighten nut A.
5. Completely tighten nuts B.
Charcoal Canister (Sub)
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
3. Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)
4. Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION.)
ac30zw00004236
|
5. Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.

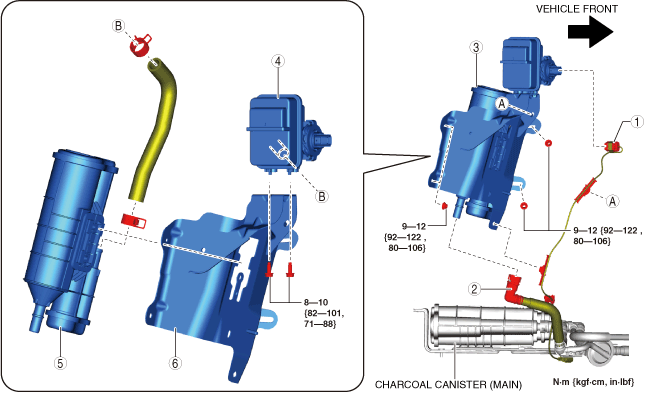

ac30zw00004237
|
|
1
|
CV solenoid valve connector
|
|
2
|
Quick release connector
|
|
3
|
Charcoal canister (sub) component
|
|
4
|
Air filter component
|
|
5
|
Charcoal canister (sub)
(See Charcoal Canister (Sub).)
|
|
6
|
Charcoal canister (sub) bracket
|
Charcoal canister (sub) removal note (Chinese specs.)
1. Release the lock as shown in the figure.
am3zzw00021206
|
2. Remove the charcoal canister (sub).
Charcoal canister (sub) installation note (Chinese specs.)

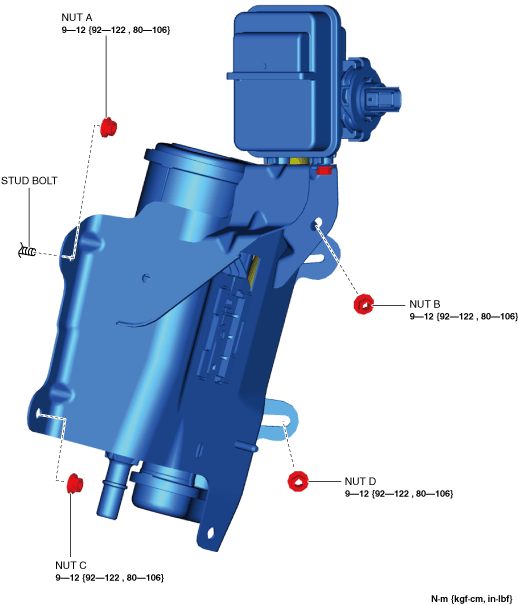

1. Temporarily install the charcoal canister (sub) component to the vehicle-side stud bolt.
ac30zw00004238
|
2. Temporarily tighten nut A.
3. Temporarily tighten nut B.
4. Temporarily tighten nut C.
5. Temporarily tighten nut D.
6. Completely tighten nuts A and C.
7. Completely tighten nuts B and D.
