BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0117008005r6

Operation After Replacing Battery

Note

•  If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, a DTC is recorded and the i-stop warning light (amber) flashes. If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, replace the battery with a new one.

•   When replacing the battery, perform the following procedure: When replacing the PCM simultaneously, perform the PCM configuration first. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)(See CONFIGURATION.)

Step	Action
1	Close the all doors.
2	Switch the ignition ON (engine off).
3	If a warning message is displayed in the screen display, clear the screen using the INFO switch and then go to the next step.
4	Shift the selector lever to the N position. (ATX) Shift the shift lever to the neutral position. (MTX)
5	Perform the following work with the brake pedal depressed. 1.  Depress the accelerator pedal for 5 s or more. 2.  Verify that a warning message (master warning light) on the screen display flashes. 3.  Depress and release the accelerator pedal 3 times. 4.  Verify that a warning message (master warning light) on the screen display turn off.
6	Switch the ignition off and disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
7	Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

Battery Removal/Installation

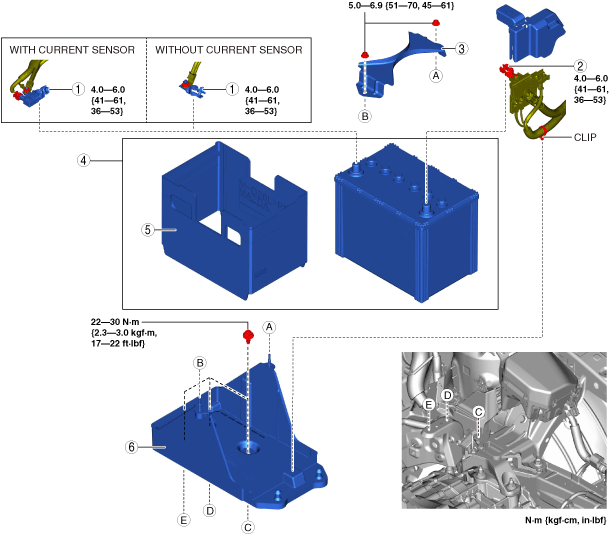

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am3zzw00030361

1	negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) (See Negative battery terminal connection note.)
2	Positive battery cable (See Positive battery terminal connection note.)
3	Battery clamp
4	Battery, Battery box
5	Battery box (See Battery box installation note.)
6	Battery tray (See Battery tray removal note.) (See Battery tray installation note.)

Battery tray removal note

1.  Remove the battery tray using the following procedure:

(1)  Remove the two fresh air duct bolts shown in the figure.

ac3wzw00004385

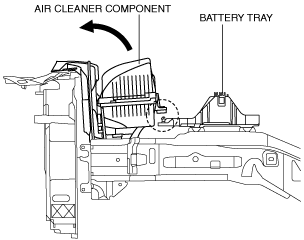

(2)  Lightly lift the air cleaner component and set the battery tray aside as shown in the figure.

am2zzw00012382

(3)  Remove the battery tray.

Battery tray installation note

1.  Install the battery tray using the following procedure:

(1)  Tighten the battery tray installation bolts in the order shown in the figure.

am3zzw00030362

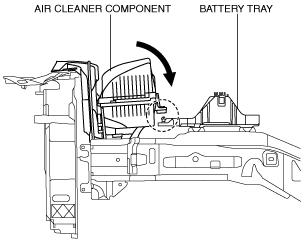

(2)  Install the air cleaner component to the battery tray.

ac3wzw00000734

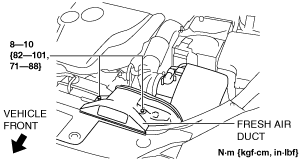

(3)  Tighten the two fresh air duct bolts shown in the figure.

ac3wzw00000735

Battery box installation note

1.  Install the battery box so that the side with the larger notch is pointed at the engine side.

ac3wzw00004386

Positive battery terminal connection note

Caution

•  Connect the battery terminal while pushing it down because the battery terminal may loosen.

Negative battery terminal connection note

Caution

•  Connect the battery terminal while pushing it down because the battery terminal may loosen.

1.  Connect the negative battery terminal so that the wiring harness does not block the upper part of the battery filler cap.

am3zzw00030225
