CRUISE CONTROL SWITCH INSPECTION

id012000800100

1. Disconnect the negative battery terminal and wait for 1 min or more.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

3. Disconnect the clock spring connector (part wiring harness-side).

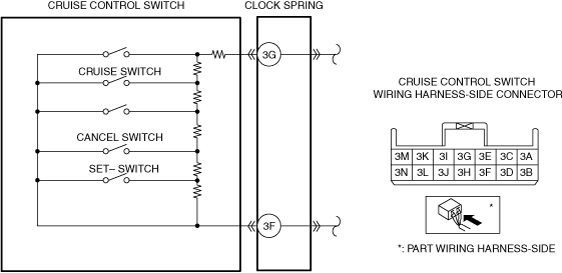

4. Measure the resistance between clock spring terminals 3F and 3G (part wiring harness-side) using a tester.

am3zzw00034779

• If as specified, go to the next step.

• If not as specified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

Switch condition

Resistance (ohm)

Cruise switch held at on

Approx. 60.4

CANCEL switch held at on

Approx. 301.3

SET- held at on

Approx. 602.3

Neutral

Approx. 1,489.3

Switch condition	Resistance (ohm)
Cruise switch held at on	Approx. 60.4
CANCEL switch held at on	Approx. 301.3
SET- held at on	Approx. 602.3
Neutral	Approx. 1,489.3

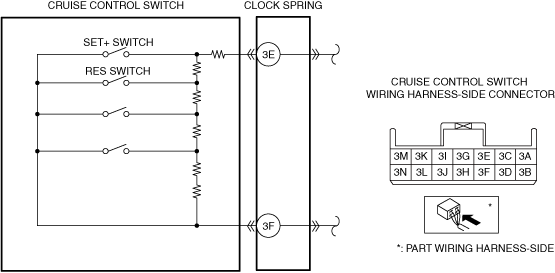

5. Measure the resistance between clock spring terminals 3E and 3F (part wiring harness-side) using a tester.

am3zzw00034790

• If as specified, go to the next step.

• If not as specified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

Switch condition

Resistance (ohm)

SET+ switch held at on

Approx. 0

RES switch held at on

Approx. 60.4

Neutral

Approx. 1,489.3

Switch condition	Resistance (ohm)
SET+ switch held at on	Approx. 0
RES switch held at on	Approx. 60.4
Neutral	Approx. 1,489.3

6. Apply battery positive voltage to clock spring terminal 3N (part wiring harness-side), and terminal 3B (part wiring harness-side) to ground.

am3zzw00032843

7. Verify that the LED in the steering switch turns on.

• If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
