WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION [(E)]

Home  id0311008004x2

Replacement part

Oil and chemical type

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode.

Caution

•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released.

•  If the front ABS wheel-speed sensor wiring harness is pulled by mistake when performing this procedure, it could cause an open circuit. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

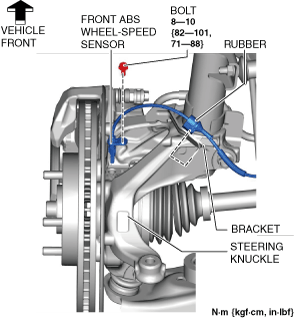

3.  Disconnect the rubber from the bracket.

ac30zw00000436

4.  Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.

5.  Remove the clip from the bracket.

ac30zw00000437

6.  Remove the front brake hose from the bracket.

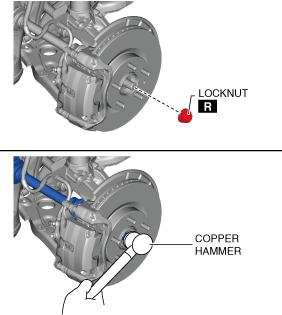

7.  Remove the locknut with the brake pedal depressed. (See Locknut Installation Note.)

ac30zw00000438

Caution

•  When removing the locknut, remove it manually without using an electric or pneumatic tool. Otherwise, the locknut may seize.

•  When removing the locknut, do not apply load at the ground to the axle. Otherwise, it could damage the wheel hub.

8.  Temporarily install a spare nut to the front drive shaft.

9.  Tap the nut with a copper hammer and separate the front drive shaft from the axle.

10.  Remove the front brake caliper component and suspend it in a place out of the way using a cable. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].)

11.  Remove the front disc plate. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].)

12.  Remove the front stabilizer control link from the front shock absorber.

ac30zw00000441

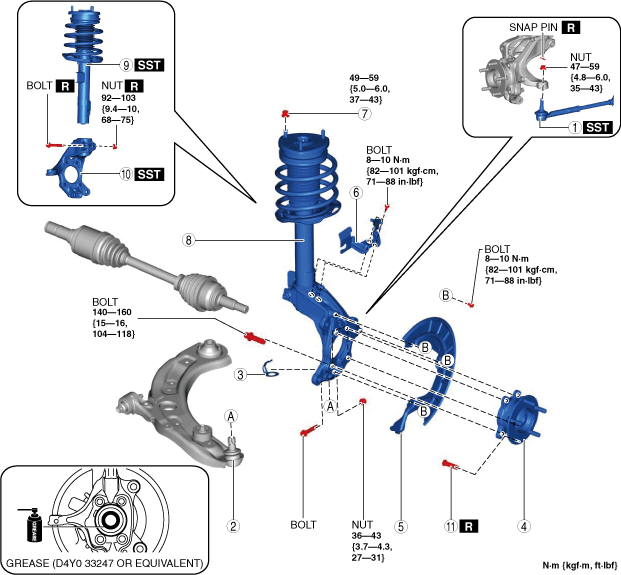

13.  Remove in the order shown in the figure.

14.  Install in the reverse order of removal.

15.  End the maintenance mode. (See MAINTENANCE MODE [(E)].)

16.  When the steering knuckle is replaced, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT [(E)].)

ac30zw00005200

1	Tie-rod end (See TIE-ROD END REPLACEMENT [(E)].)
2	Front lower arm ball joint (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)
3	Ball joint cover (With ball joint cover)
4	Front wheel hub (See Front Wheel Hub Installation Note.)
5	Dust cover
6	Bracket
7	Front shock absorber upper nut
8	Front shock absorber and steering knuckle component
9	Front shock absorber and coil spring (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
10	Steering knuckle (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
11	Front wheel hub bolt (See Front Wheel Hub Bolt Removal Note.) (See Front Wheel Hub Bolt Installation Note.)

Front Wheel Hub Bolt Removal Note

Note

•  Only remove a front wheel hub bolt if it is malfunctioning.

1.  Remove the front wheel hub bolt from the front wheel hub using a press.

ac8wzw00002017

Front Wheel Hub Bolt Installation Note

1.  Press fit the new front wheel hub bolt to the front wheel hub.

ac30zw00000443

Front Wheel Hub Installation Note

1.  Apply grease (D4Y0 33247 or equivalent) to the wheel bearing inner race and front drive shaft contact surfaces (area A in the figure).

am3zzw00034654

2.  Install the front wheel hub, dust cover, and steering knuckle component.

Locknut Installation Note

Caution

•  When installing the locknut, install it manually without using an electric or pneumatic tool. Otherwise, the locknut may seize and the tightening force of the wheel hub may decrease and cause excessive play or abnormal noise.

•  When installing the locknut, do not apply load at the ground to the axle. Otherwise, it could damage the wheel hub.

1.  If dust or grease is on the drive shaft thread area, wipe it off with a cloth.

2.  Working with two people, one should depress and hold the pedal down.

3.  While the brake pedal is depressed, the other should tighten the locknut using the following procedure.

ac30zw00003422
