FRONT ABS WHEEL-SPEED SENSOR INSPECTION

FRONT ABS WHEEL-SPEED SENSOR INSPECTION

 id041500800400


Sensor Output Value Inspection

Caution
•  Resistance inspection using other testers may cause damage to the front ABS wheel-speed sensor internal circuit. Be sure to use the M-MDS to inspect the front ABS wheel-speed sensor.

1.  Switch the ignition off.

2.  Connect the M-MDS to the DLC-2.

3.  Select the following PIDs using the M-MDS: (See PID/DATA MONITOR INSPECTION.)

•  WSPD_SEN_L/F (LF wheel-speed sensor)
•  WSPD_SEN_R/F (RF wheel-speed sensor)

4.  Start the engine and drive the vehicle.

5.  Verify that the display of the M-MDS shows the same value as the speedometer.

•  If there is any malfunction, replace the front ABS wheel-speed sensor.(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [(E)].)


Installation Visual Inspection

1.  Inspect for the following:

•  Excessive play of the front ABS wheel-speed sensor
•  Deformation of the front ABS wheel-speed sensor
•  Deformation or damage of the ABS sensor rotor
―  If there is any malfunction, replace the front ABS wheel-speed sensor.(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [(E)].)


Clearance Inspection


Preparation prior to inspection

1.  Remove the front ABS wheel-speed sensor.(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [(E)].)

2.  Remove the wheel hub and steering knuckle as a single unit.(See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION [(E)].)

3.  Install the front ABS wheel-speed sensor to the removed wheel hub, steering knuckle component, and tighten to the specified torque.

am3zzw00032201


Clearance inspection

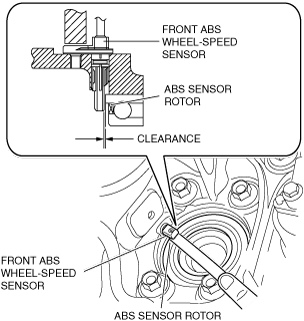

1.  Measure the gap between the ABS sensor rotor and front ABS wheel-speed sensor using a feeler gauge.

am6xuw00010668

•  If not within the specification, verify the following items and repair or replace if necessary.
―  Is there deformation or damage to the ABS sensor rotor?
―  Is there deformation or damage to the ABS wheel speed sensor?
―  Is there foreign matter adhering?
Clearance
0.87—1.53 mm {0.035—0.060 in}


Servicing after inspection

1.  Remove the front ABS wheel-speed sensor from the wheel hub, steering knuckle component.

2.  Install the wheel hub, steering knuckle component.(See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION [(E)].)

3.  Install the front ABS wheel-speed sensor.(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [(E)].)

4.  Inspect the front wheel alignment.(See FRONT WHEEL ALIGNMENT [(E)].)
