AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (E)]

AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (E)]

 id0517n31172y4

Special Service Tool (SST)

1.  : Mazda SST number
2.  : Global SST number
1: 49 C017 5A0
2: –

Engine support set
1: 49 UN30 3050
2: 303–050

Engine lifting bracket
1: 49 L017 5A0
2: –

Support hanger

Caution
•  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
•  If the automatic transaxle has been replaced, perform initial learning. (See INITIAL LEARNING [ET6A-EL, ET6AX-EL (E)].)
•  Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

Removal

1.  When replacing the automatic transaxle, perform TCM configuration. (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

4.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

5.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

6.  Remove the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

7.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

8.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

9.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

10.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

11.  Disconnect the electric AT oil pump connector. (With i-stop)

ac30zw00003968

12.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing. (With i-stop)

ac30zw00003969

13.  Disconnect the control valve body connector.

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Water or foreign matter entering the connector can cause a poor connection or corrosion. Be careful not to allow water droplets or foreign matter to get on the connector when disconnecting it.
am3zzw00022344

14.  Remove the wiring harness clip and bolts, and set the wiring harnesses and wiring harness brackets in a place which does not interfere with servicing.

am3zzw00022744

15.  Disconnect the ground cable.

am3zzw00021743

16.  Disconnect the selector cable from the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION [(E)].)

17.  Remove the selector cable bracket.

am3zzw00021744

18.  Remove the bracket.

am3zzw00022346

19.  Disconnect the breather hose from the transaxle.

am3zzw00021745

20.  Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

21.  Disconnect the intermediate shaft (lower side) from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION [(E)].)

22.  Remove the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

23.  Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

24.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

25.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (E)].)

26.  Remove the oil cooler and water hose component as a single unit. (Except automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

27.  Remove the water hose component. (Automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

28.  Remove the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

29.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

30.  Remove the blind cover.

am3zzw00022347

31.  Hold the crankshaft pulley to prevent drive plate from rotating.

am3uuw00002582

32.  Remove the torque converter nuts from the starter installation hole.

am3zzw00022348

33.  Remove the service hole cover.

ac30zw00001262

34.  Disconnect the tie-rod ends from the steering knuckles. (See TIE-ROD END REPLACEMENT [(E)].)

35.  Disconnect the front lower arm ball joints from the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)

36.  Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

37.  Disconnect the front drive shaft (RH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

38.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

39.  Remove the No.1 engine mount bracket from the transaxle.

am3zzw00021747

40.  Install the SST using the following procedures.

ac5uuw00006422

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
(1)  Install one front foot No.2 to each of the left and right front shafts of the SST.
(2)  Protect the positions shown in the area using tape.
am3zzw00022349
(3)  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
(4)  To enable installation of the SST, disconnect the wiring harness clip shown in the figure and set the wiring harness aside.
ac30zw00003443
(5)  Install the SST using a bolt with part number 99794 1025 or an M10—1.25, length 25 mm {0.98 in} bolt, and a washer as shown in the figure.

Engine front side

am3zzw00032216

Engine rear side

am3zzw00032217
(6)  As shown in the figure, set the rear shafts of the SST to the left and right front shock absorber nuts.
am3zzw00022352
(7)  Set the front shafts of the SST (49 C017 5A0) as shown in the figure.
am3zzw00022353
(8)  To prevent interference of the SST with the hose when assembling the SST (49 L017 5A0), disconnect the hose clip from the bracket shown in the figure and set the fuel hose and vacuum hose aside.
am3zzw00022354
(9)  Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the figure.
am3zzw00022355
(10)  Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.
am3zzw00022356
(11)  Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST.
(12)  Apply tension to the chain to support the engine and verify that the engine is securely hung.

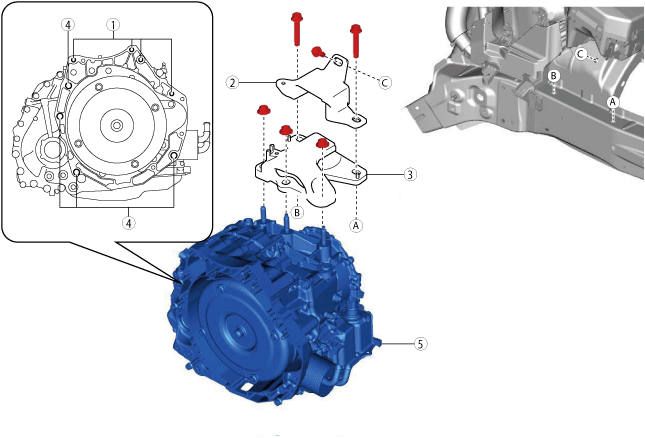

41.  Remove in the order shown in the figure.

Warning
•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
Caution
•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.
ac30zw00004148

1
Transaxle mounting bolts (upper side)
2
No.4 engine mount bracket
(See No.4 engine mount rubber and No.4 engine mount bracket removal note.)
3
No.4 engine mount rubber
(See No.4 engine mount rubber and No.4 engine mount bracket removal note.)
4
Transaxle mounting bolts (lower side)
(See Transaxle mounting bolt removal note.)
5
Transaxle


No.4 engine mount rubber and No.4 engine mount bracket removal note

Caution
•  Slots have been adopted for the No.4 engine mount rubber and No.4 engine mount bracket installation holes. If the No.4 engine mount rubber and No.4 engine mount bracket deviate from their original positions when they are installed, engine noise or vibration could increase. When installing the No.4 engine mount rubber and No.4 engine mount bracket, align them to the alignment marks placed during removal and install them to their original positions.

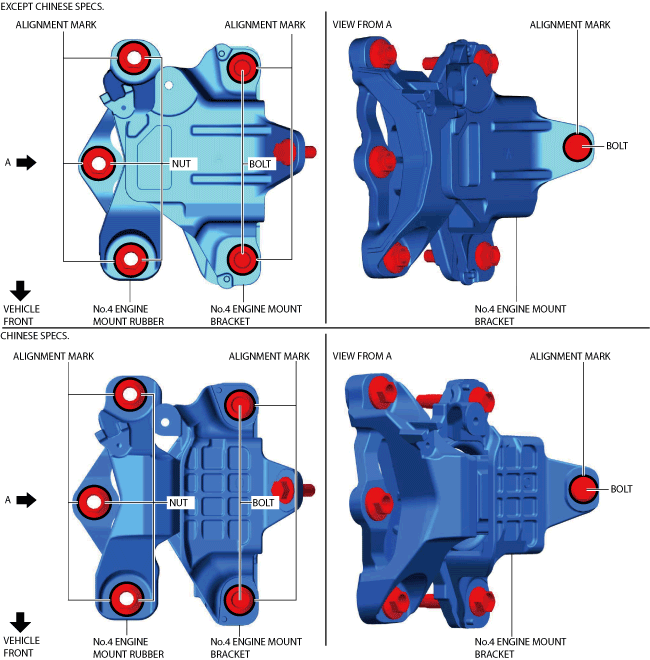

1.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac30zw00004149

Note
•  Place the alignment marks so that the contour of the nuts and bolts are outlined.

2.  Remove the No.4 engine mount rubber and the No.4 engine mount bracket.


Transaxle mounting bolt removal note

Warning
•  Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

1.  Adjust the SST and lean the engine toward the transaxle.

am3zzw00022355

2.  Support the transaxle on a jack.

am3uuw00002584

3.  Remove the transaxle mounting bolts (lower side).

4.  Remove the transaxle.


Installation

Caution
•  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

1.  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.

am3zzw00022357

2.  Install the transaxle mounting bolts.

am3zzw00032218

3.  Tighten the stud bolts for the transaxle.

am3zzw00032219

Note
•  If the No.4 engine mount bracket nut is loosened, tighten the stud bolts for the transaxle because they may be loosened.

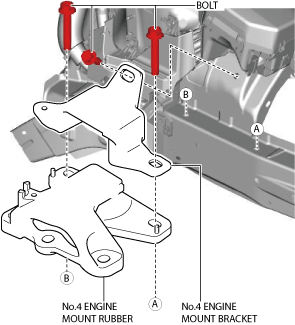

4.  Install the No.4 engine mount bracket and the No.4 engine mount rubber, and temporarily tighten the bolts shown in the figure.

ac30zw00004150

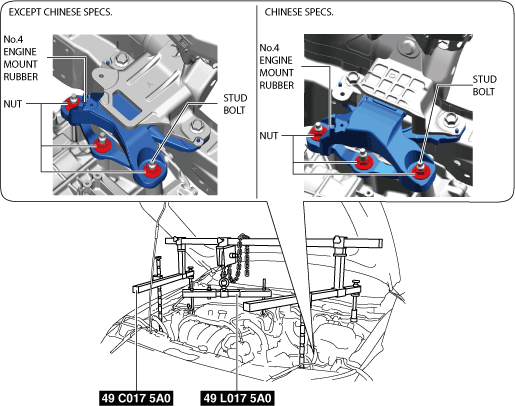

5.  Lift up the transaxle using the SSTs, pass the stud bolt through the No.4 engine mount rubber, and temporarily tighten the No.4 engine mount rubber installation nuts.

ac30zw00004151

6.  Install the No.1 engine mount bracket, and tighten the installation bolts in the order shown in the figure.

am3zzw00032220

7.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

8.  Temporarily tighten the No.1 engine mount rubber installation bolts.

am3zzw00021754

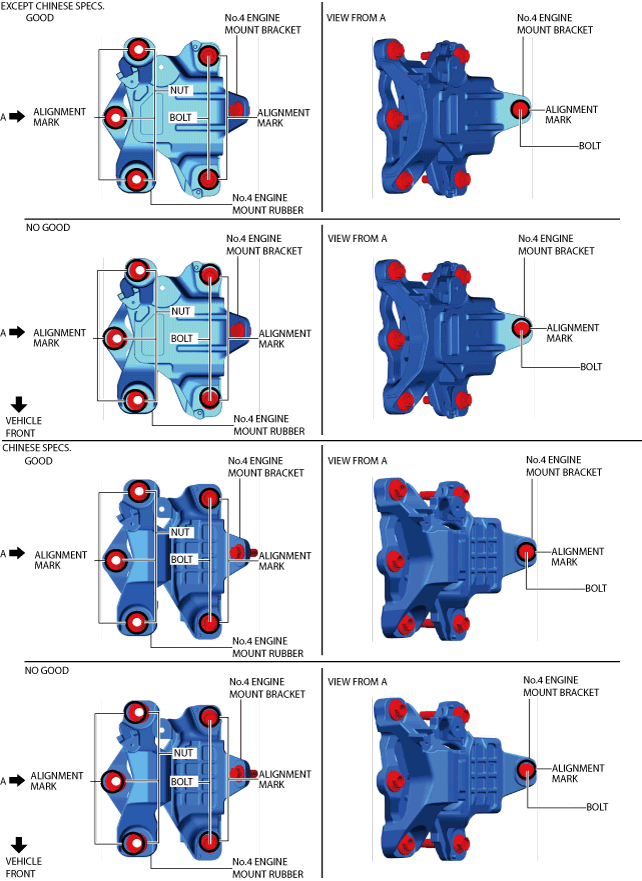

9.  Align the nuts and bolts shown in the figure with the alignment marks.

ac30zw00004152

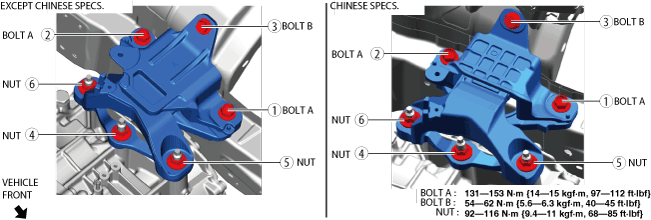

10.  Tighten the No.4 engine mount rubber installation nuts and the No.4 engine mount bracket installation bolts in the order shown in the figure.

ac30zw00004710

11.  Remove the SST (49 C017 5A0).

12.  Tighten the No.1 engine mount rubber installation bolts in the order shown in the figure.

am3zzw00032222

13.  Connect the hose clip to the bracket shown in the figure.

am3zzw00022354

14.  Connect the wiring harness clip shown in the figure.

ac30zw00003443

15.  Install the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

16.  Fix the crankshaft pulley to lock the torque converter against rotation.

am3uuw00002582

Caution
•  After temporarily tightening the torque converter installation nut uniformly, tighten it to the specified torque.

17.  Tighten the torque converter installation nuts.

am3zzw00032223

18.  Install the service hole cover using the following procedure.

(1)  Align the service hole cover so that its arrow is facing the front of the vehicle as shown in the figure.
ac30zw00004740

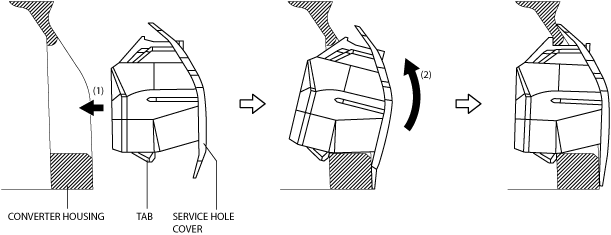

(2)  Move the service hole cover in the direction of arrow (1) shown in the figure and hook the service hole cover tab onto the converter housing.
ac30zw00004741
(3)  Install the service hole cover by pushing it in the direction of arrow (2) shown in the figure using the service hole cover tab as a pivot.
(4)  Verify that the service hole cover is securely installed.

19.  Install the blind cover.

am3zzw00022347

20.  Install the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

21.  Connect the front drive shaft (RH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

22.  Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

23.  Connect the front lower arm ball joint to the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)

24.  Connect the tie-rod ends to the steering knuckles. (See TIE-ROD END REPLACEMENT [(E)].)

25.  Install the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

26.  Install the water hose component. (Automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

27.  Install the oil cooler and water hose component as a single unit. (Except automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

28.  Install the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

29.  Install the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

30.  Connect the intermediate shaft (lower side) to the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION [(E)].)

31.  Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

32.  Connect the breather hose to the transaxle.

am3zzw00021745

33.  Install the bracket to the transaxle and the exhaust manifold using the following procedure:

am3zzw00032224

(1)  Tighten bolt A.
(2)  Temporarily tighten bolt B and C.
(3)  Tighten bolt B.
(4)  Tighten bolt C.

34.  Install the selector cable bracket.

am3zzw00022851

35.  Connect the selector cable to the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION [(E)].)

36.  Connect the ground cable to the No.4 engine mount rubber.

am3zzw00022852

37.  Install the wiring harness clip and wiring harness bracket.

am3zzw00022360

38.  Tighten the wiring harness bracket installation bolts in the order shown in the figure.

am3zzw00032225

39.  Connect the control valve body connector.

am3zzw00022344

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
•  Insert the connector straight as the connector terminal could be damaged.
•  Rotate the connector lever until a click is heard.

40.  Install the wiring harness bracket. (With i-stop)

ac30zw00003971

41.  Connect the electric AT oil pump connector. (With i-stop)

ac30zw00003968

42.  Install the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

43.  Install the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

44.  Install the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

45.  Install the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

46.  Install the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

47.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

48.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

49.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

50.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (E)].)

51.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

52.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

53.  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)

54.  If the automatic transaxle has been replaced, perform the “Initial Learning”. (See INITIAL LEARNING [ET6A-EL, ET6AX-EL (E)].)

55.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [ET6A-EL, ET6AX-EL (E)].)
