MAGNETIC CLUTCH INSPECTION [SKYACTIV-G]

MAGNETIC CLUTCH INSPECTION [SKYACTIV-G]

 id0711000065k8

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G].)

3.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

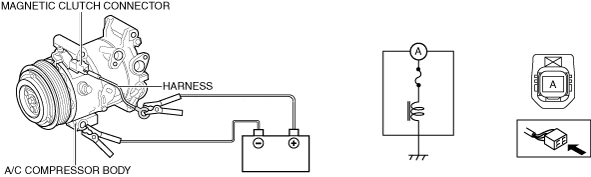

ac30zw00001626

4.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G].)
