MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G]

Home  id0711000063k8

Replacement Part

Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle

1.  Disassemble in the order indicated in the table.

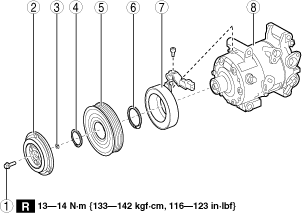

am3zzw00026493

1	Bolt (See Bolt removal/installation.)
2	Pressure plate
3	Shim
4	Snap ring
5	A/C compressor pulley
6	Snap ring
7	Stator
8	A/C compressor body

2.  Assemble in the reverse order of disassembly.

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G].)

Bolt removal/installation

1.  Connect the harness to the magnetic clutch connector.

am3zzw00029190

2.  Connect the battery (+) cable to the harness.

3.  Connect the battery (-) cable to the A/C compressor body.

Note

•  Energize the magnet clutch and fix the A/C compressor pulley and the pressure plate.

4.  Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.

am3zzw00029191

5.  Hold the drive belt in place with pliers.

6.  Remove/installation the bolt.

Magnetic Clutch is Disassembled/Assembled with A/C Compressor Equipped to Vehicle

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Wheel and tire (RF) (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

(2)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(3)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(4)  Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

(5)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)

(6)  Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

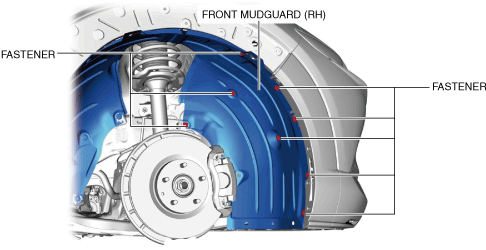

ac30zw00001818

4.  Bend back the front side of the front mudguard (RH) in the direction of the arrow shown in the figure.

ac30zw00001819

5.  Disconnect the magnetic clutch connector. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G].)

6.  Disassemble in the order indicated in the table.

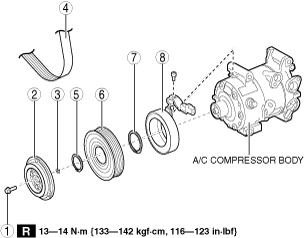

am3zzw00026494

1	Bolt (See Bolt removal/installation.)
2	Pressure plate
3	Shim
4	Drive Belt (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See DECOUPLING RING TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	Snap ring
6	A/C compressor pulley
7	Snap ring
8	Stator (See Stator removal/installation note.)

7.  Assemble in the reverse order of disassembly.

8.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G].)

Bolt removal/installation

1.  Connect the harness to the magnetic clutch connector.

am3zzw00032041

2.  Connect the battery (+) cable to the harness.

3.  Connect the battery (-) cable to the A/C compressor body.

Note

•  Energize the magnet clutch and fix the A/C compressor pulley and the pressure plate.

4.  Secure the crankshaft pulley.

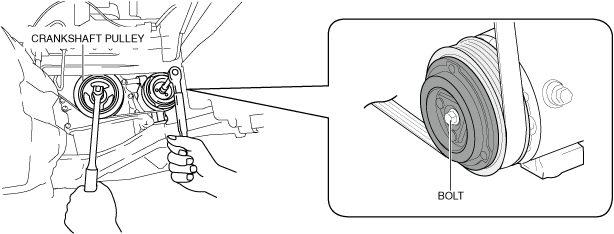

ac30zw00001820

5.  Remove/installation the bolt.

Stator removal/installation note

1.  Remove the bolts A, B, and C.

am3zzw00029192

2.  Loose bolt D approx. 5 mm {0.2 in}.

3.  Tilt the A/C compressor centered around bolt D.

am3zzw00021315

4.  Remove the screw.

am3zzw00021316

5.  Remove the stator.
