AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

 id0740a1803200

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Upper face (See UPPER FACE REMOVAL/INSTALLATION.)
(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

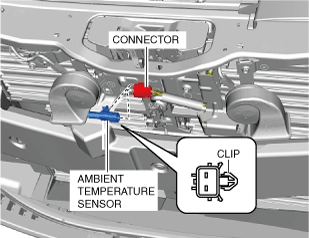

3.  Disconnect the connector.

am3zzw00021380

4.  Detach the clip and remove the ambient temperature sensor.

5.  Install in the reverse order of removal.

6.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

8.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
