REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER (E)]

Home  id0740a28174y4

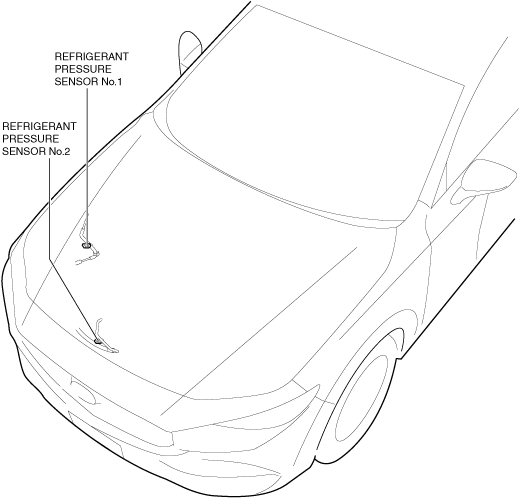

ac30zw00001640

SKYACTIV-G (Refrigerant pressure sensor No.1)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 2AZ, 2AV and 2AI.

4.  Using the graph below, measure and verify the terminal voltages at 2AV.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

•  Terminal 2AZ: Approx. 5 V (Ignition switch ON)

•  Terminal 2AI: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

ac30zw00004205

SKYACTIV-G (Refrigerant pressure sensor No.2)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 1D, 1AU and 1BH.

4.  Using the graph below, measure and verify the terminal voltages at 1AU.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

•  Terminal 1D: Approx. 5 V (Ignition switch ON)

•  Terminal 1BH: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

ac30zw00001642

SKYACTIV-D 1.8 (Refrigerant pressure sensor No.1)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 2BB, 2BH and 2BD.

4.  Using the graph below, measure and verify the terminal voltages at 2BH.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-D 1.8].)

•  Terminal 2BB: Approx. 5 V (Ignition switch ON)

•  Terminal 2BD: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

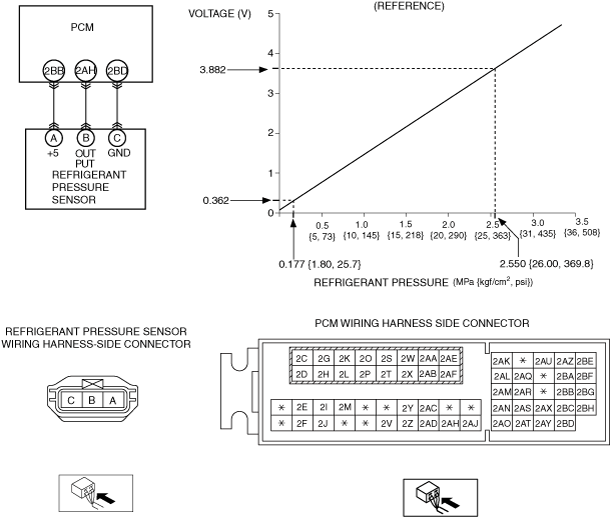

am3zzw00027685

SKYACTIV-D 1.8 (Refrigerant pressure sensor No.2)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 2BB, 2AH and 2BD.

4.  Using the graph below, measure and verify the terminal voltages at 2AH.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-D 1.8].)

•  Terminal 2BB: Approx. 5 V (Ignition switch ON)

•  Terminal 2BD: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

am3zzw00028894

SKYACTIV-X 2.0 (Refrigerant pressure sensor No.1)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 2AZ, 2AV and 2AI.

4.  Using the graph below, measure and verify the terminal voltages at 2AV.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-X 2.0].)

•  Terminal 2AZ: Approx. 5 V (Ignition switch ON)

•  Terminal 2AI: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

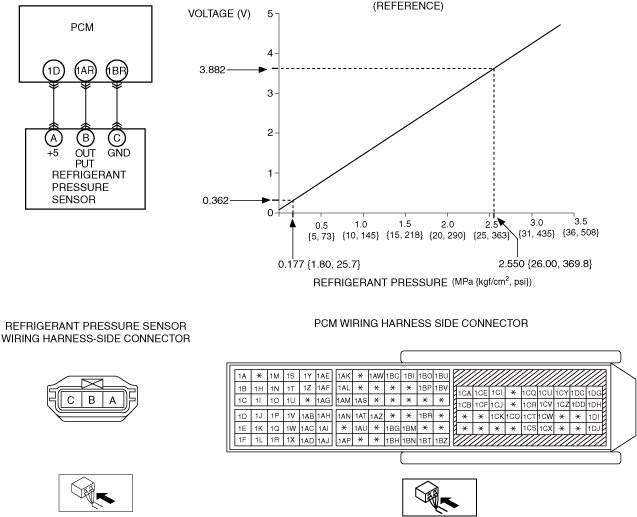

ac30zw00001649

SKYACTIV-X 2.0 (Refrigerant pressure sensor No.2)

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

3.  Measure the terminal voltage at PCM terminal 1D, 1AR and 1BR.

4.  Using the graph below, measure and verify the terminal voltages at 1AR.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-X 2.0].)

•  Terminal 1D: Approx. 5 V (Ignition switch ON)

•  Terminal 1BR: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.
