DTC B1127:11, B1127:12, B1127:13, B1127:19 OR B1127:1A [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)]

DTC B1127:11, B1127:12, B1127:13, B1127:19 OR B1127:1A [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)]

 id0802g8010300

Note
•  The SRS air bag system can be identified by whether or not the seat track position sensor is present.
―  Standard deployment control system: Without seat track position sensor
―  Two-step deployment control system: With seat track position sensor

Outline

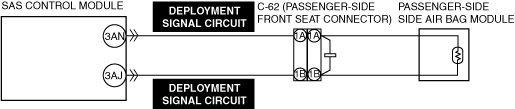

System malfunction location

B1127:11: Passenger-side side air bag module circuit short to body ground

B1127:12: Passenger-side side air bag module circuit short to power supply

B1127:13: Passenger-side side air bag module circuit open circuit or resistance high

B1127:19: Short circuit to passenger-side side air bag module and other air bag module circuits

B1127:1A: Passenger-side side air bag module circuit resistance low
Detection condition
Warning
•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
•  Resistance other than 0.81—9.85 ohms detected in passenger-side side air bag module circuit
•  Wiring harness between the passenger-side side air bag module and SAS control module has a malfunction
Fail-safe
•  Not applicable
Possible cause
•  C-62 connector (passenger-side front seat connector) malfunction
•  Open circuit in passenger-side side air bag module deployment signal circuit
•  Short circuit to body ground in passenger-side side air bag module deployment signal circuit
•  Short circuit to power supply in passenger-side side air bag module deployment signal circuit
•  Short circuit to each other in passenger-side air bag module deployment signal circuit
•  Short circuit to other air bag module circuits in passenger-side air bag module deployment signal circuit
•  Passenger-side side air bag module malfunction
•  SAS control module malfunction

Diagnostic Procedure

Step

Inspection

Results

Action
1
INSPECT C-62 CONNECTOR (PASSENGER-SIDE FRONT SEAT CONNECTOR)
Warning
•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
•  Switch the ignition off.
•  Disconnect the negative battery terminal and wait for 1 min or more.
•  Disconnect the C-62 connector (passenger-side front seat connector) .
•  Inspect the C-62 connector (passenger-side front seat connector) . (Corrosion, damage, and disconnected pins)
•  Is there any malfunction of the C-62 connector (passenger-side front seat connector) ?
Yes
Replace the malfunctioning part and perform the repair completion verification.
No
Go to the next step.
2
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE DEPLOYMENT SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Disconnect the driver-side knee air bag module connector.
•  Disconnect the driver-side air bag module connectors.
•  Remove the clock spring.
•  Disconnect the passenger-side air bag module connector.
•  Disconnect the driver-side front seat connector.
•  Disconnect the driver and passenger-side curtain air bag module connectors.
•  Disconnect the driver and passenger-side front pre-tensioner seat belt connectors.
•  Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors.
•  Disconnect the all SAS control module connectors.
•  Inspect the passenger-side air bag module deployment signal circuit for a short to ground.
Note
•  Inspect for a short to ground while shaking the wiring harness between the SAS control module and the C-62 connector (passenger-side front seat connector) .
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
3
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE DEPLOYMENT SIGNAL CIRCUIT FOR OPEN CIRCUIT
•  Inspect the passenger-side air bag module deployment signal circuit for open circuit.
Note
•  Inspect for open circuit while shaking the wiring harness between the SAS control module and C-62 connector (passenger-side front seat connector) .
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
4
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE DEPLOYMENT SIGNAL CIRCUIT FOR SHORT TO EACH OTHER
•  Inspect the passenger-side air bag module deployment signal circuit for short to each other.
Note
•  Inspect for short to each other while shaking the wiring harness between the SAS control module and C-62 connector (passenger-side front seat connector) .
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
5
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE DEPLOYMENT SIGNAL CIRCUIT FOR SHORT TO OTHER AIR BAG MODULE CIRCUIT
•  Refer to the wiring diagram and inspect for continuity between the following terminals and other air bag module/pre-tensioner seat belt terminals (wiring harness-side).
―  SAS control module terminal 3AN
―  SAS control module terminal 3AJ
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and C-62 connector (passenger-side front seat connector) .
•  Is there continuity?
Yes
Repair or replace the malfunctioning location and perform the repair completion verification.
No
Go to the next step.
6
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE DEPLOYMENT SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Inspect the passenger-side air bag module deployment signal circuit for a short to power supply.
Note
•  Inspect for a short to power supply while shaking the wiring harness between the SAS control module and C-62 connector (passenger-side front seat connector) .
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
7
INSPECT PASSENGER-SIDE SIDE AIR BAG MODULE
•  Switch the ignition off.
•  Disconnect the negative battery terminal and wait for 1 min or more.
•  Connect the SAS control module connectors.
•  Except for the C-62 connector (passenger-side front seat connector) , reconnect all disconnected connectors.
•  Apply 2 ohms resistance to the C-62 connector (passenger-side front seat connector) terminals 1A and 1B.
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same Pending DTCs present?
Yes
Perform the repair completion verification.
No
Replace the passenger-side side air bag module and perform the repair completion verification.
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
Repair completion verification
PERFORM SAS CONTROL MODULE DTC INSPECTION
•  Switch the ignition off.
•  Disconnect the negative battery terminal and wait for 1 min or more.
•  Disconnect the 2 ohms resistance.
•  Connect the C-62 connector (passenger-side front seat connector) .
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same Pending DTCs present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction recurs, replace the SAS control module.
No
DTC troubleshooting completed.
