CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
Home
Replacement Part
Clip
Quantity: 1
Location of use: Curtain air bag module
Warning
Note
• The SRS air bag system can be identified by whether or not the seat track position sensor is present.
― Standard deployment control system: Without seat track position sensor
― Two-step deployment control system: With seat track position sensor
1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more . (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]
3. Remove the following parts:
(1) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)]
(2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION
(3) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION
(4) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(E)]
(5) Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION
(6) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION
(7) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION
(8) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION
(9) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION
(10) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R]
(11) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION
(12) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION
(13) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION
(14) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION
(15) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION
(16) Side wall (See SIDE WALL REMOVAL/INSTALLATION
(17) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(18) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
(19) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)]
(20) Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION
(21) Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION
(22) Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION
(23) Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(E)]
(24) Headliner (See HEADLINER REMOVAL/INSTALLATION [(E)]

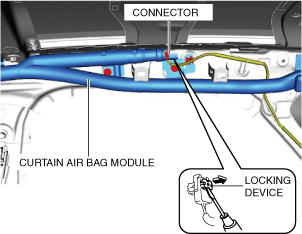

4. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
5. Disconnect the connector.

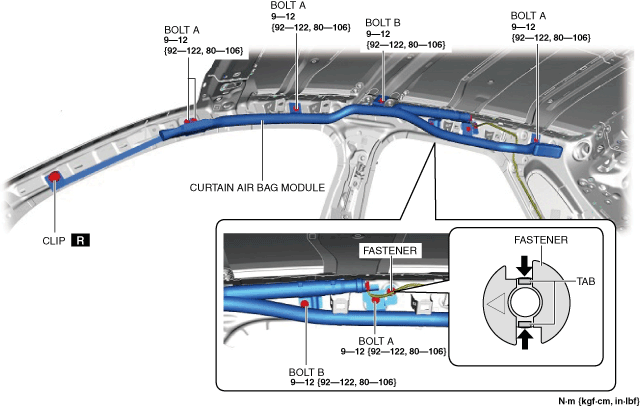

6. Remove bolts A.
7. Remove bolts B.
8. Remove the clip. (See Clip Removal Note
9. Press the tabs of the fastener in the directions of the arrows shown in the figure and remove the fastener.

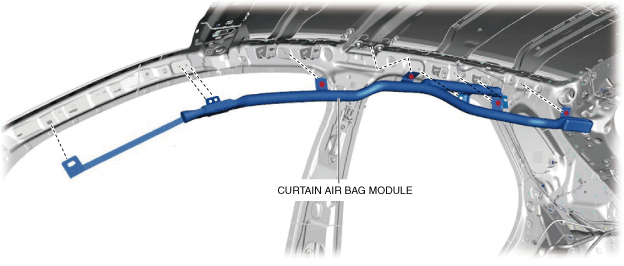

10. Remove the curtain air bag module.
11. Install in the reverse order of removal.
12. Switch the ignition ON (engine off or on).
13. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
• If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See
DTC INSPECTION .)
1. Pull out (2) the pin while pressing the tabs in the directions of the arrows (1) shown in the figure.
2. Insert a flathead screwdriver into the locations shown in the figure and detach the tabs from the body panel.
3. Remove the clip.
