SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]


 id0810b1803700

Warning
•  Handling the front seat (with side air bag module) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the air bag system service warnings and cautions before handling the front seat (with side air bag module). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
Note
•  The SRS air bag system can be identified by whether or not the seat track position sensor is present.
―  Standard deployment control system: Without seat track position sensor
―  Two-step deployment control system: With seat track position sensor

1.  Perform the following procedure. (without Mazda M Hybrid)

(1)  Switch the ignition off.
(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Perform the following procedure. (with Mazda M Hybrid, with seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the connector. (See Connector Disconnect Note.)

ac5wzw00008909

5.  Remove the screw.

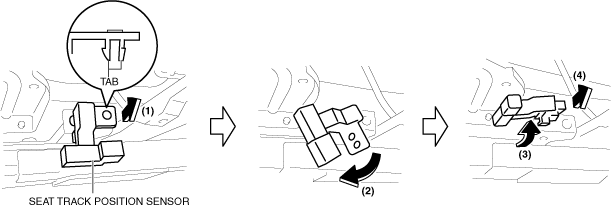

6.  Detach the tab while lifting up the seat track position sensor in the direction of the arrow (1).

ac5wzw00008910

7.  Rotate the seat track position sensor in the direction of the arrow (2).

8.  Rotate the seat track position sensor in the direction of the arrow (3).

9.  Remove the seat track position sensor (4).

10.  Install in the reverse order of removal.

11.  Switch the ignition ON (engine off or on).

12.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION.)

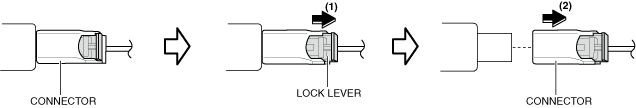

Connector Disconnect Note

1.  Pull out the connector lock lever in the direction of arrow (1) shown in the figure.

ac5wzw00008911

2.  Move the connector in the direction of arrow (2) shown in the figure to disconnect it.
