DTC B1D39:13 [BODY CONTROL MODULE (BCM)]
id0902r7118300
Outline

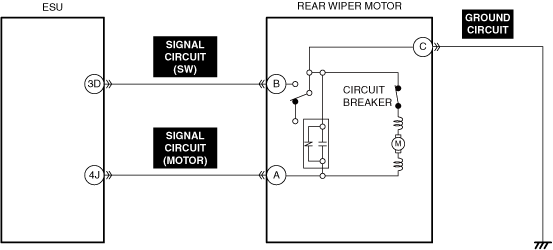

System malfunction location |
Rear wiper motor circuit malfunction |
||||
---|---|---|---|---|---|
Detection condition
|
• The electrical supply unit (ESU) detects an open circuit in the rear wiper motor circuit.
Preconditions
• Rear wiper switch position is ON.
|
||||
Fail-safe
|
Not applicable
|
||||
Possible cause
|
• Rear wiper motor connector or terminal malfunction
• Electrical supply unit (ESU) connector or terminal malfunction
• Open circuit in rear wiper motor signal circuit (motor)
• Rear wiper motor malfunction
• Electrical supply unit (ESU) malfunction
• Body control module (BCM) malfunction
|
||||
![]() |
|||||
![]() |
![]() |
![]() |
Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Operate the rear wiper switch to ON position.
• Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Go to the next step.
|
No
|
Go to repair completion verification 2.
|
||
2
|
INSPECT REAR WIPER MOTOR CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
3
|
INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
4
|
INSPECT REAR WIPER MOTOR SIGNAL CIRCUIT (MOTOR) FOR OPEN CIRCUIT
• Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
5
|
INSPECT REAR WIPER MOTOR FOR MALFUNCTION
• Inspect the applicable part.
(See REAR WIPER MOTOR INSPECTION.)
• Is the part normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
6
|
INSPECT ELECTRICAL SUPPLY UNIT (ESU) FOR MALFUNCTION DEPENDING ON REPEATABILITY
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Operate the rear wiper switch to ON position.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.
|
No
|
Go to repair completion verification 2.
|
||
Repair completion verification 1
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Operate the rear wiper switch to ON position.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the body control module (BCM), then go to the next step.
|
No
|
Go to the next step.
|
||
Repair completion verification 2
|
VERIFY IF OTHER DTC IS DISPLAYED
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
