DOOR ADJUSTMENT

id091100521100

1. Measure the gap and height difference between the door and the body.

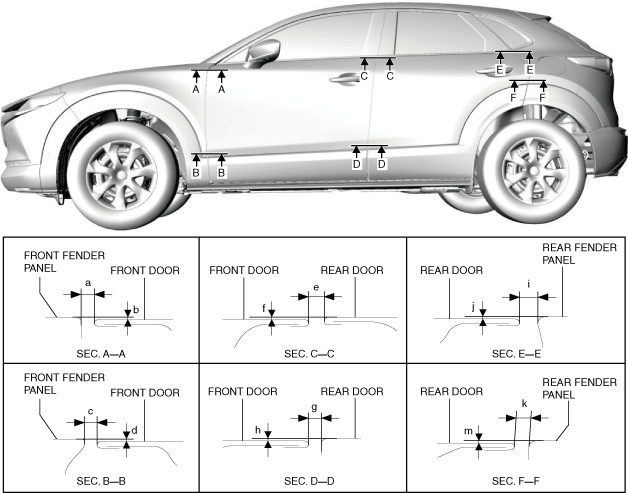

ac30zw00001589

Standard clearance

a: 2.4—4.4 mm {0.10—0.17 in}

b: –1.0—1.0 mm {–0.039—0.039 in}

c: 2.6—4.3 mm {0.11—0.16 in}

d: –1.0—0.9 mm {–0.03—0.03 in}

e: 3.3—5.1 mm {0.13—0.20 in}

f: –1.0—1.0 mm {–0.039—0.039 in}

g: 2.5—4.3 mm {0.10—0.16 in}

h: –1.0—1.0 mm {–0.039—0.039 in}

i: 3.7—5.7 mm {0.15—0.22 in}

j: –1.0—1.0 mm {–0.039—0.039 in}

k: 2.8—4.8 mm {0.12—0.18 in}

m: –1.0—1.0 mm {–0.039—0.039 in}

• If the measured value exceeds the standard clearance, adjust the door using the following procedure:

1. Loosen the door hinge installation bolts and adjust the door.

2. Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

3. If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER ADJUSTMENT.)

4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.

5. If the front door is adjusted, perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
