FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

 id091200001100

Note
•  The front power window motor is integrated with the front power window regulator.

1.  Fully open the front door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
(2)  Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
(3)  Power window subswitch (front) (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)
(5)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
(6)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

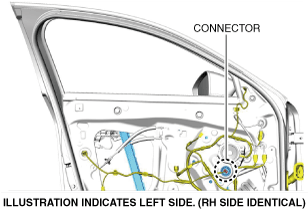

4.  Disconnect the connector.

ac30zw00001315

5.  Remove service hole covers No.3.

ac30zw00001316

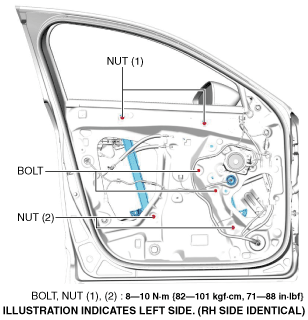

6.  Remove the bolts.

ac30zw00001317

7.  Remove the nuts shown in the figure in the order of (1) and (2).

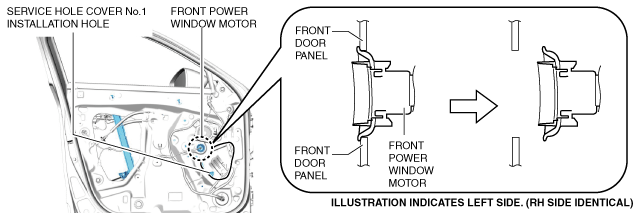

8.  Insert a hand from the service hole cover No.1 installation hole and remove the front power window motor from the front door panel.

ac30zw00001318

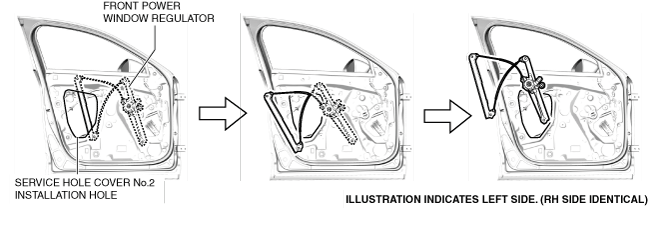

9.  Remove the front power window regulator through the service hole cover No.2 installation hole.

Caution
•  When removing the front power window regulator, the front power window regulator may contact the service hole cover No.2 installation hole, and the coating film of the front door inner panel and the front power window regulator could be damaged. Remove the front power window regulator while verifying that the front power window regulator and the service hole cover No.2 installation hole do not contact each other.
ac30zw00001319

10.  Install in the reverse order of removal. (See Front Power Window Regulator Installation Note.)

11.  Perform the power window system initialization procedure. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)


Front Power Window Regulator Installation Note

1.  The front power window regulator installation work can be facilitated by performing the following procedure:

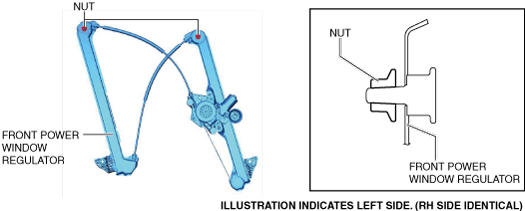

(1)  Temporarily tighten the nuts shown in the figure.
ac30zw00001320

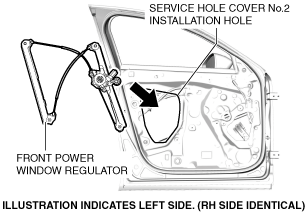

(2)  Insert the front power window regulator from the service hole cover No.2 installation hole.
ac30zw00001321

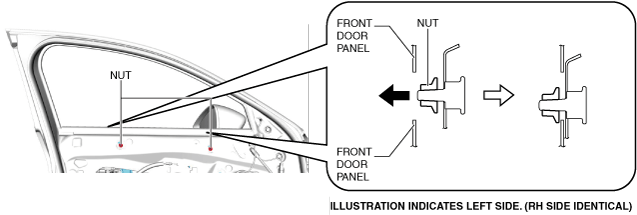

(3)  Hook the temporarily tightened nuts to the front door panel.
ac30zw00001322
