POWER SEAT SWITCH INSPECTION

POWER SEAT SWITCH INSPECTION


id091300801100

Warning
•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated).
(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the power seat switch. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)].)

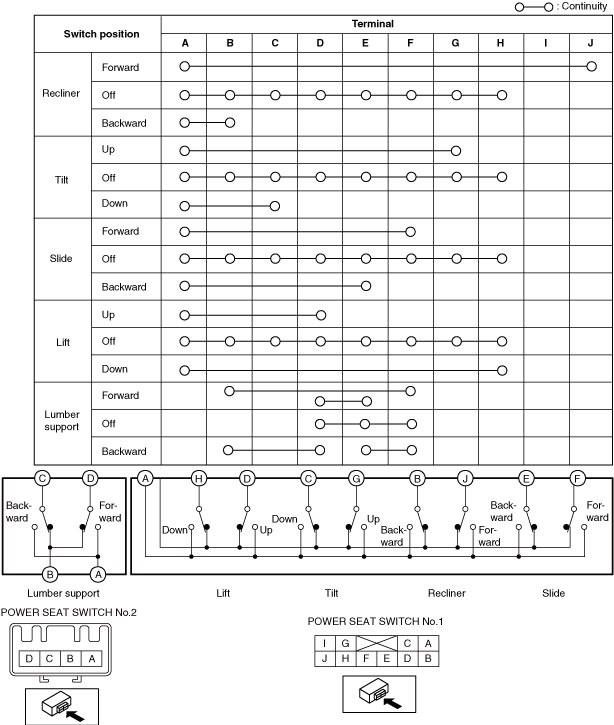

3.  Verify that the continuity between the power seat switch terminals is as indicated in the table.

•  If not as specified, replace the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)
ac30zw00004829
