FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)]

id0913009121x2

Replacement part

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

•  If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanisms on both sides are locked. (with manual seat)

Caution

•  After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever. (with manual seat)

•  Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Front Door Side

With power seat system

1.  Remove the head restraint.

2.  Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

3.  Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

4.  Perform the following procedure. (without Mazda M Hybrid)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Perform the following procedure. (with Mazda M Hybrid, without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

6.  Perform the following procedure. (with Mazda M Hybrid, with seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

7.  Remove the front seat.(See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

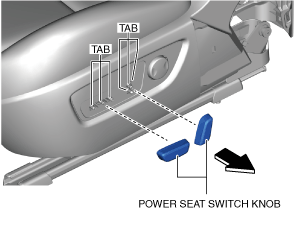

8.  Pull the power seat switch knobs in the direction of the arrow shown in the figure and remove them while disengaging tabs.

ac30zw00002635

9.  Disengage the tab from the front seat cushion frame.

ac30zw00002636

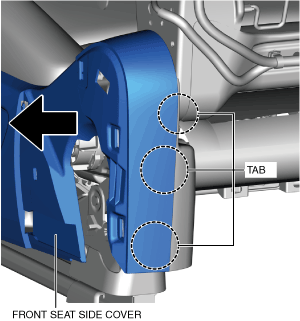

10.  Move the front seat side cover in the direction of the arrow shown in the figure while disengaging the tabs from the reverse cover.

ac30zw00002637

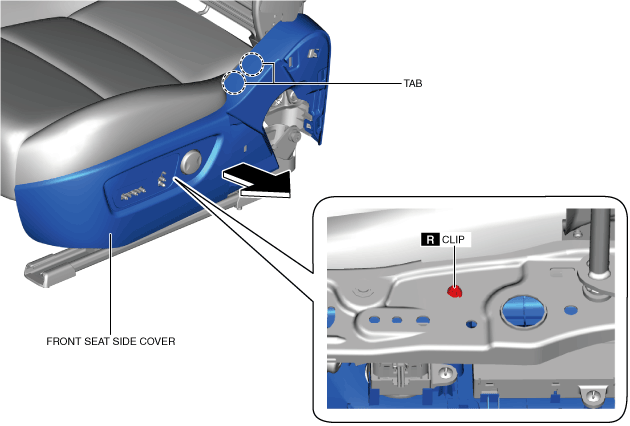

11.  Pull the front seat side cover in the direction of the arrow shown in the figure and disengage the tabs and the clip.

ac30zw00002638

12.  Disconnect the power seat switch connector.

13.  Install in the reverse order of removal.
