FRONT OUTER HANDLE REMOVAL/INSTALLATION

id091400510100

Driver's Side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2) Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(4) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(5) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

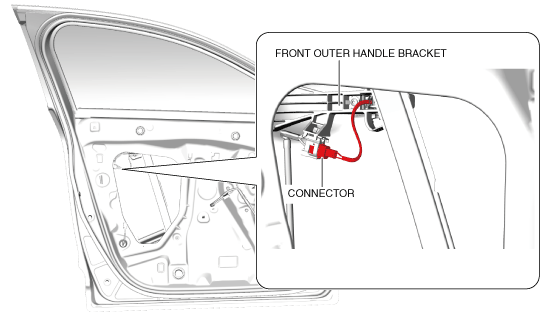

4. Disconnect the keyless antenna connector. (with advanced keyless entry system)

ac30zw00000777

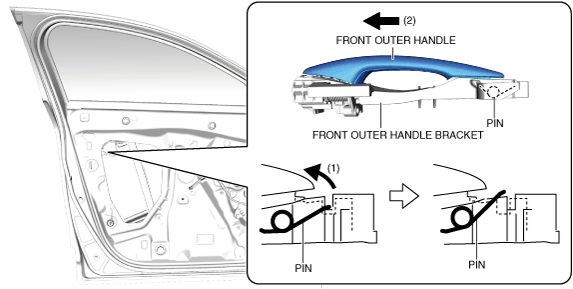

5. While pressing the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) and detach the front outer handle bracket pin from the front outer handle.

ac30zw00000778

6. Remove the front outer handle in the direction of the arrow shown in the figure. (See Front outer handle installation note.)

ac30zw00000779

7. Remove the service hole cover.

ac30zw00000780

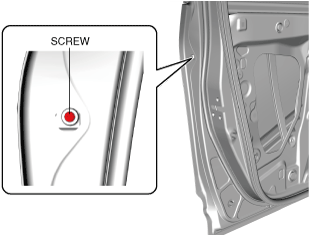

8. Loosen the screw.

ac30zw00000781

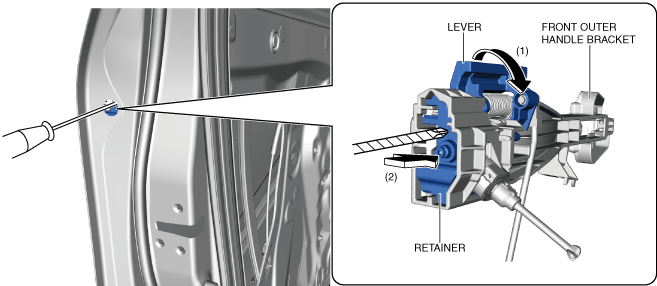

9. While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

ac30zw00000782

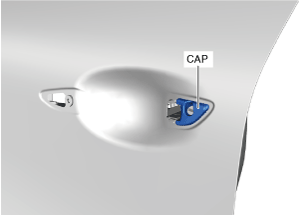

10. Remove the cap. (See Cap installation note.)

ac30zw00000783

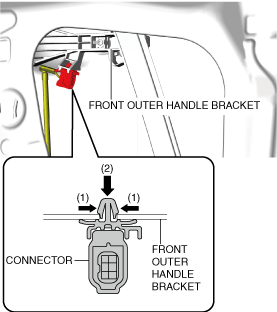

11. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

ac30zw00000784

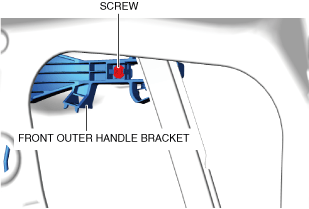

12. Loosen the screw securing the front outer handle bracket.

ac30zw00000785

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

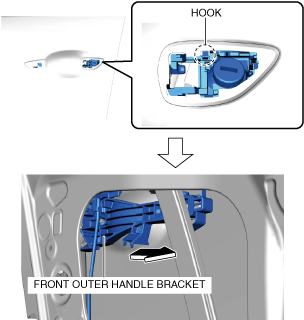

13. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hook from the body.

ac30zw00000786

14. Remove the front outer handle bracket and front door key cylinder as a single unit.

15. Remove the front door key cylinder. (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

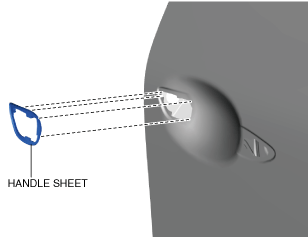

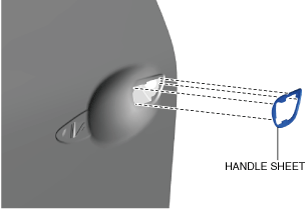

16. Remove the handle sheet from the body.

ac30zw00000787

17. Install in the reverse order of removal.

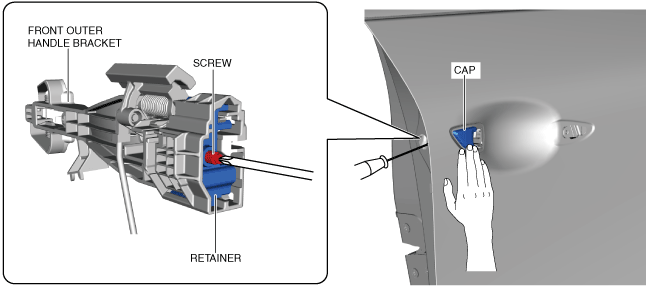

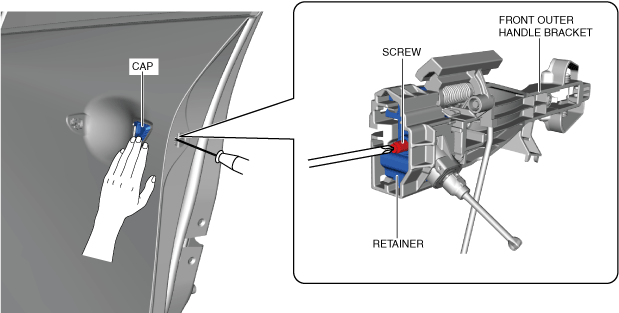

Cap installation note

1. Tighten the screw while holding the cap, and return the retainer to its original position.

ac30zw00000788

Front outer handle installation note

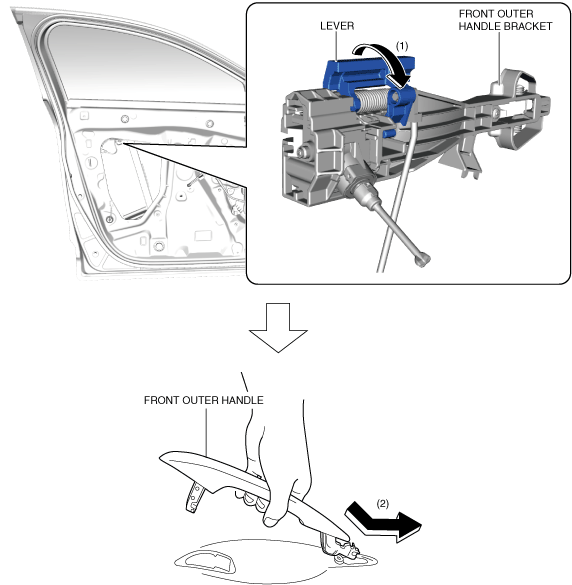

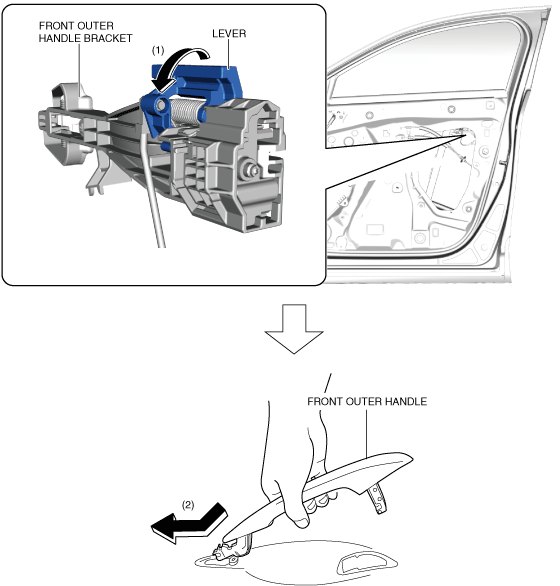

1. While pressing the front outer handle bracket towards the body, move the lever in the direction of arrow (1) shown in the figure, move the front outer handle in the direction of arrow (2), and then install the front outer handle.

ac30zw00000789

Passenger's Side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2) Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(3) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(4) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

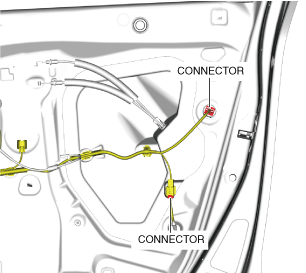

4. Disconnect the connector.

ac30zw00000790

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

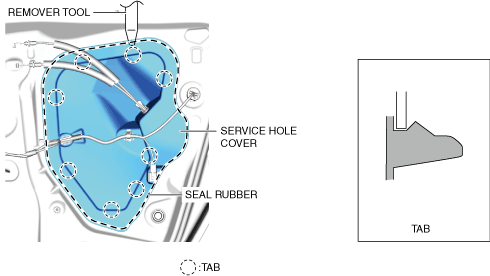

5. Detach the service hole cover tabs from the body using a remover tool.

ac30zw00000791

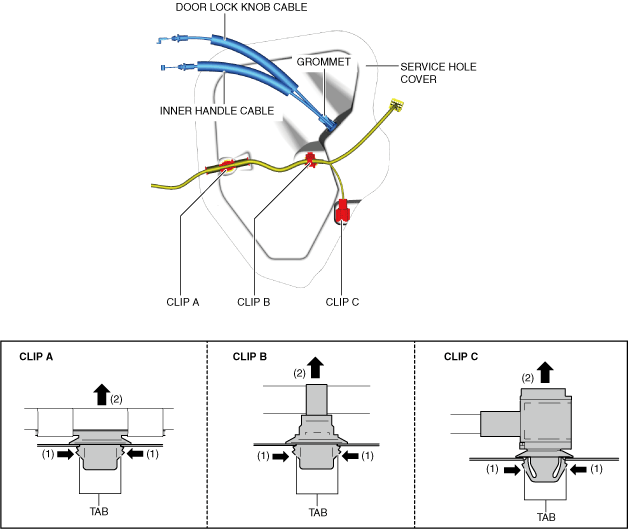

6. Remove the clips A,B and C.

ac30zw00000792

7. Remove the grommet.

8. Pull the door lock knob cable and the inner handle cable from the service hole cover.

9. Remove the service hole cover. (See Service hole cover installation note.)

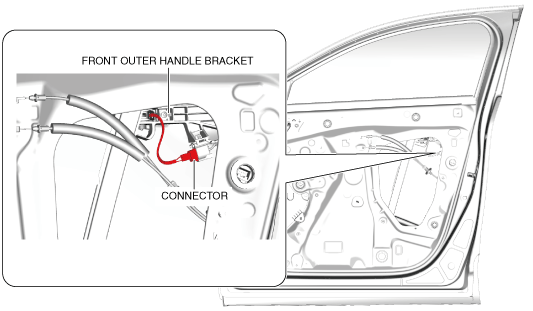

10. Disconnect the keyless antenna connector. (with advanced keyless entry system)

ac30zw00000793

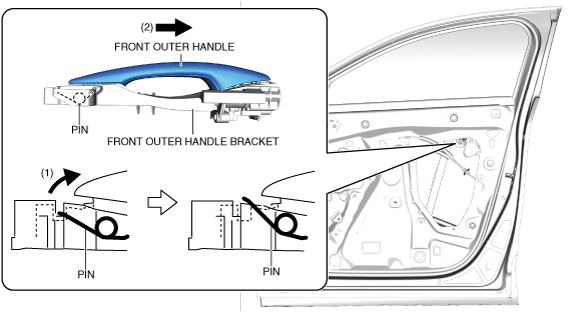

11. While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) and detach the front outer handle bracket pin from the front outer handle.

ac30zw00000794

12. Remove the front outer handle in the direction of the arrow shown in the figure. (See Front outer handle installation note.)

ac30zw00000795

13. Remove the service hole cover.

ac30zw00000796

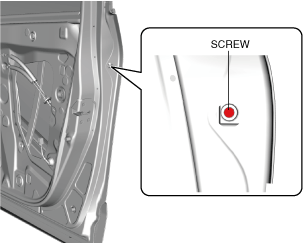

14. Loosen the screw.

ac30zw00000797

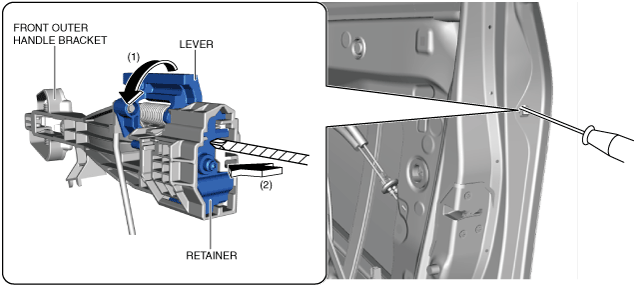

15. While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

ac30zw00000798

16. Remove the cap. (See Cap installation note.)

ac30zw00000799

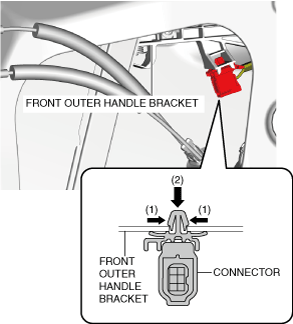

17. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

ac30zw00000800

18. Loosen the screw securing the front outer handle bracket.

ac30zw00000801

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

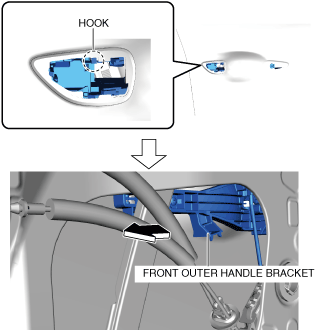

19. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hook from the body.

ac30zw00000802

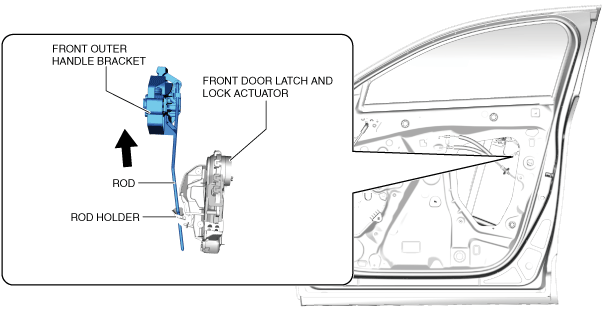

20. Lift the front outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Front outer handle bracket installation note.)

ac30zw00000803
