SIDE STEP MOLDING INSTALLATION
id091600804300

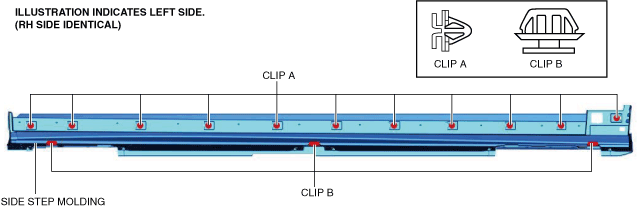

1. Install clips A and B to the side step molding.
ac30zw00001477
|

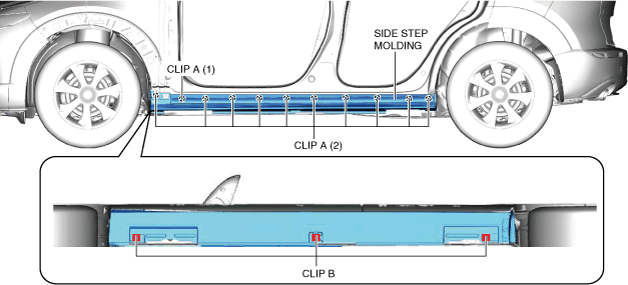

2. Press the side step molding and install clips A to the body in the order of (1), (2).
ac30zw00001478
|
3. Press the side step molding and install clips B to the body.
4. Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
5. Install the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
