SIDE STEP MOLDING REMOVAL
id091600804400
1. Remove the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
2. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

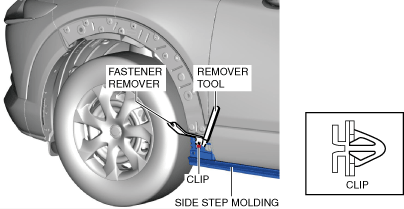

3. Insert a remover tool and fastener remover shown in the figure, and detach the clip from the body.
ac30zw00001479
|

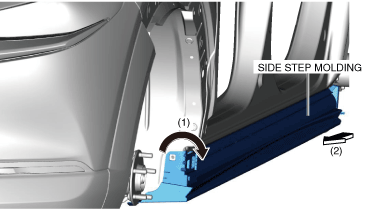

4. Remove the side step molding in the direction of arrow (2) shown in the figure while pulling it in the direction of arrow (1).
ac30zw00001480
|
5. After removing the side step molding, remove the clips from the body using a fastener remover.
