LIGHT SWITCH REMOVAL/INSTALLATION [(E)]
id0918008028x2
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)
4. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
5. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)
6. Remove the Wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

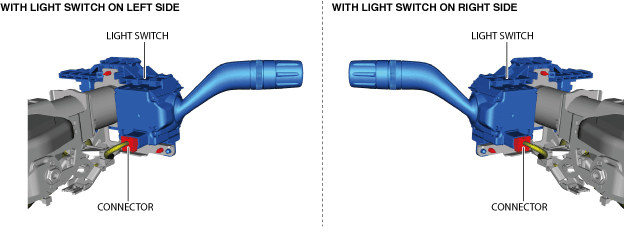

7. Disconnect the connectors.
am3zzw00030985
|

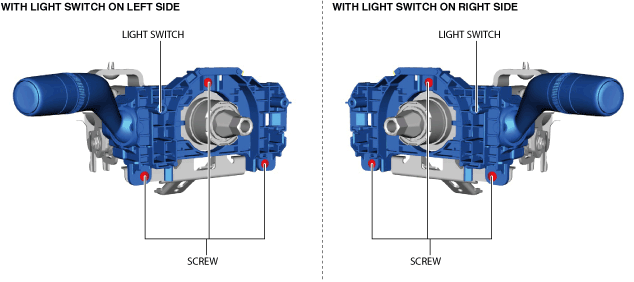

8. Remove the screws.
am3zzw00030986
|

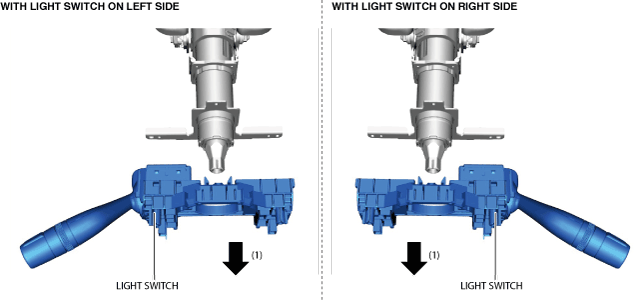

9. While pull out the combination light in the direction of arrow (1) shown in the figure.
am3zzw00030987
|
10. Remove the light switch.
11. Install in the reverse order of removal.
