COLUMN COVER REMOVAL/INSTALLATION

id091700800800

Upper Column Cover

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

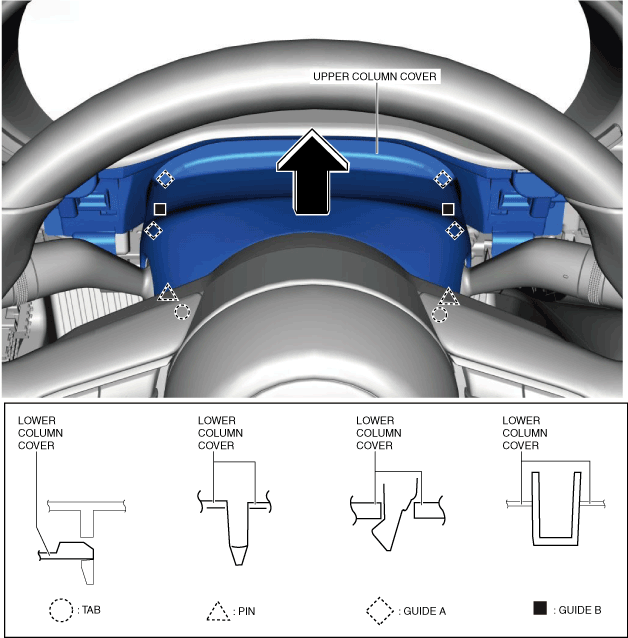

3.  Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.

ac30zw00000219

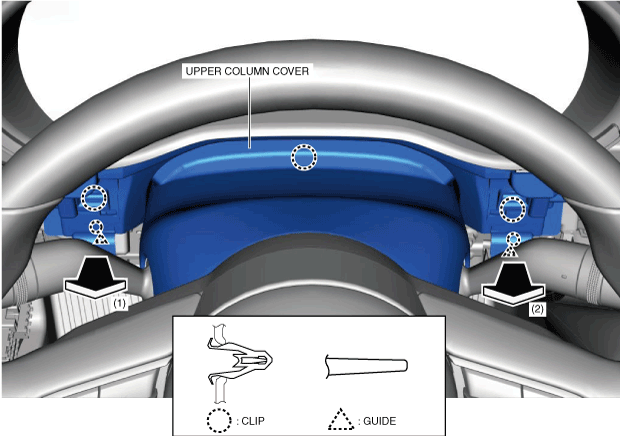

4.  Move the upper column cover in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guides.

ac30zw00000220

5.  Install in the reverse order of removal.

Lower Column Cover

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

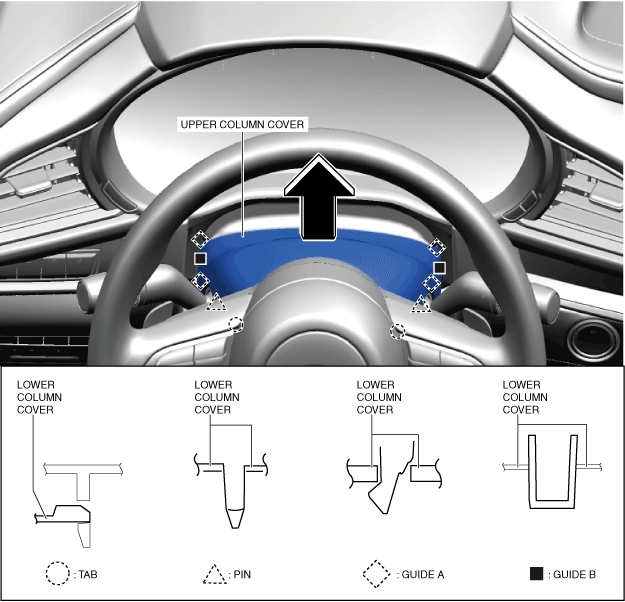

2.  Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.

ac30zw00005212

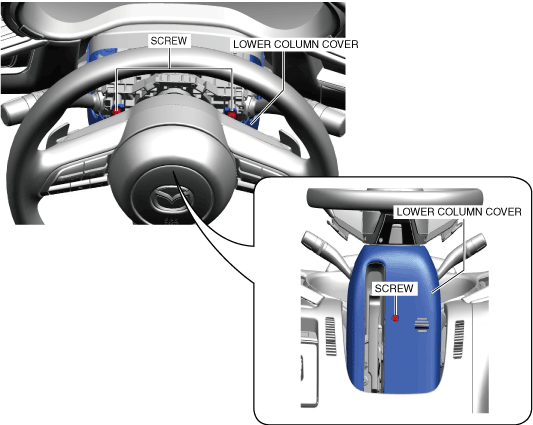

3.  Remove the screws.

ac30zw00005213

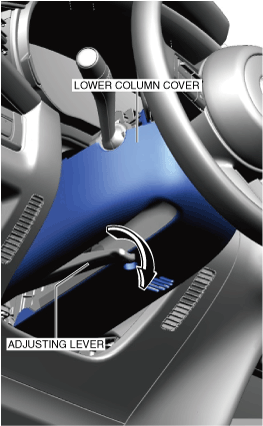

4.  Lower the adjusting lever to the bottommost position.

ac30zw00005214

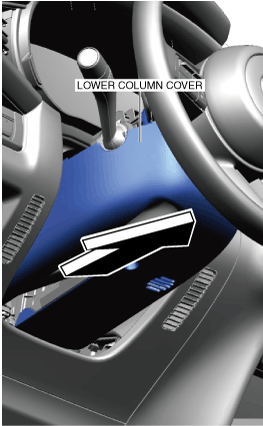

5.  Remove the lower column cover in the direction of the arrow shown in the figure.

ac30zw00005215

6.  Disconnect the notification and warning speaker connector. (with notification and warning speaker)

7.  Install in the reverse order of removal.

Note

•  When replacing the lower column cover, remove the notification and warning speaker (front). (with notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.)
